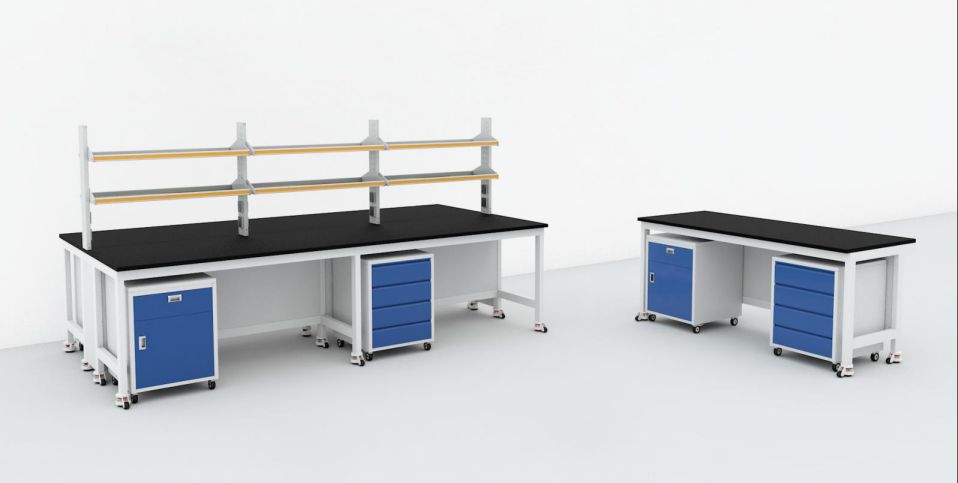

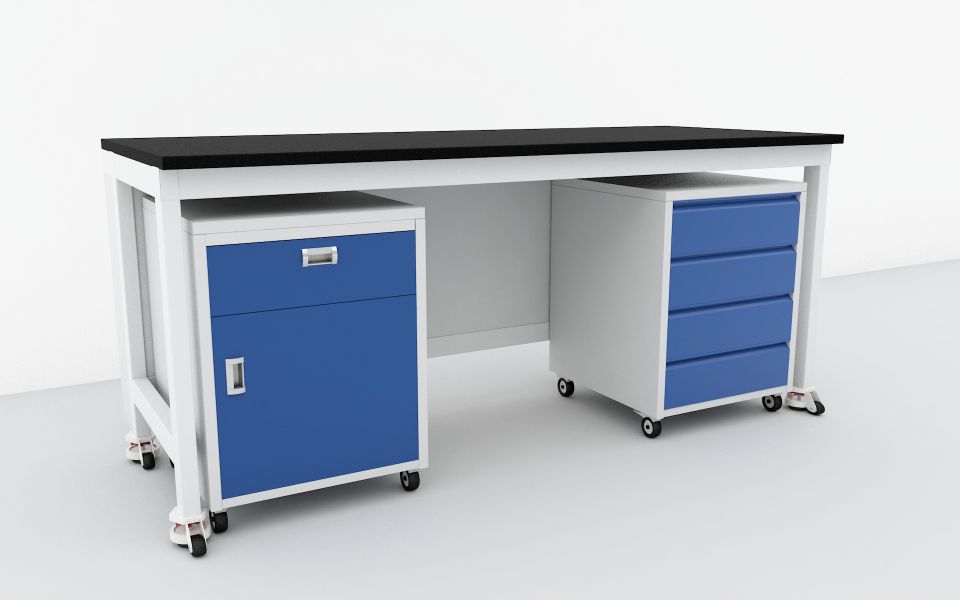

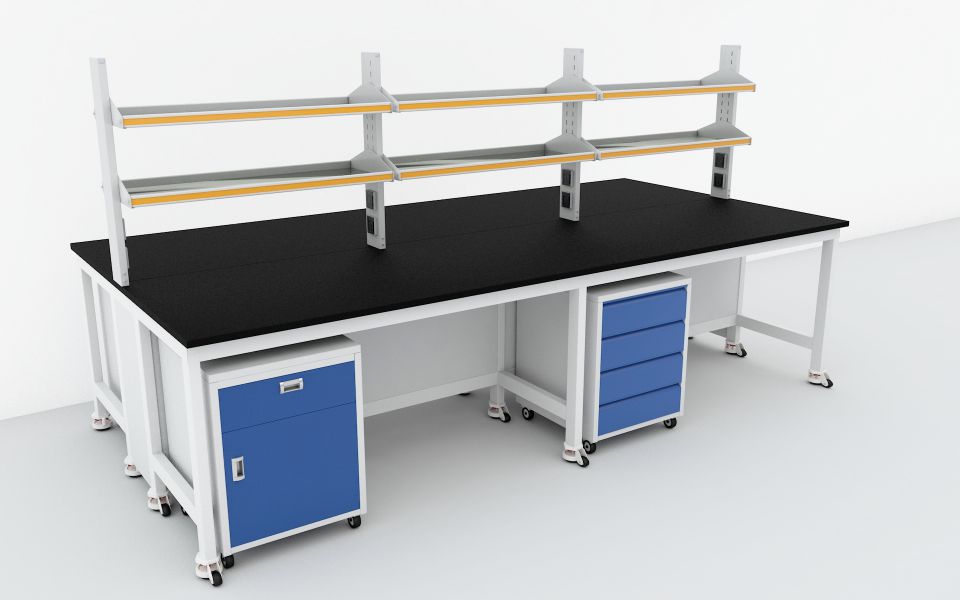

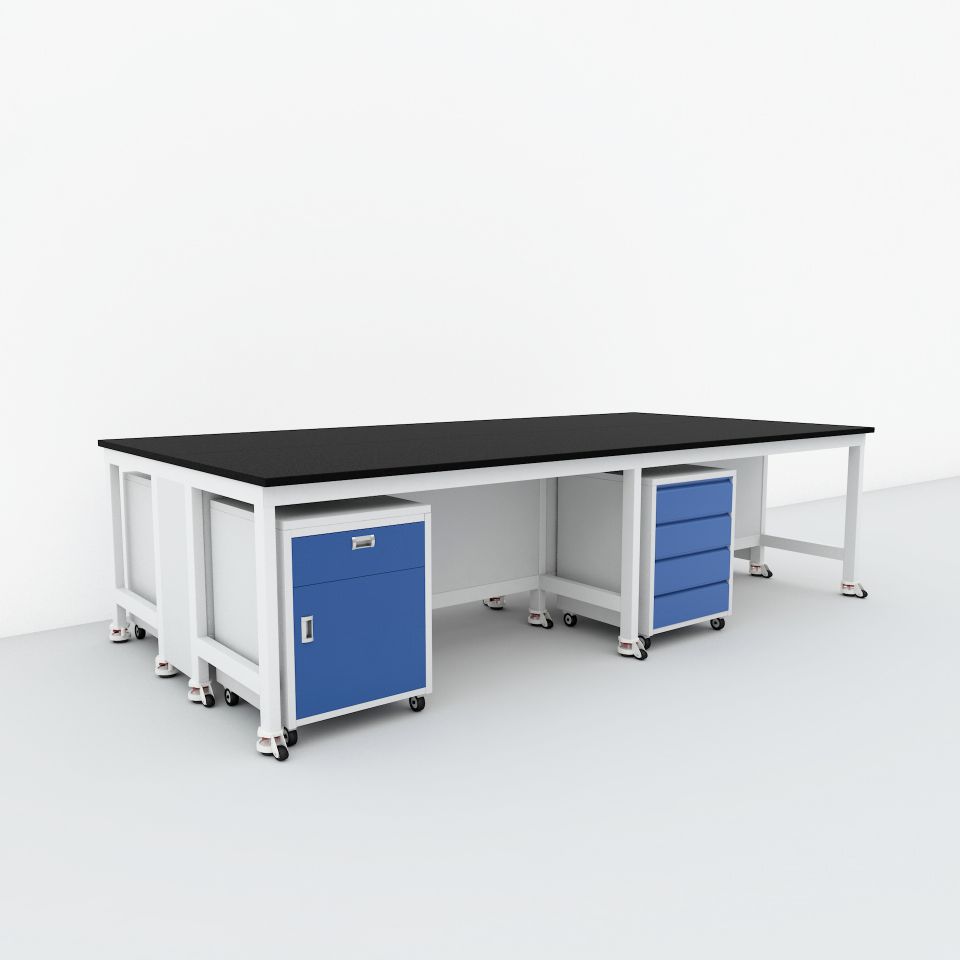

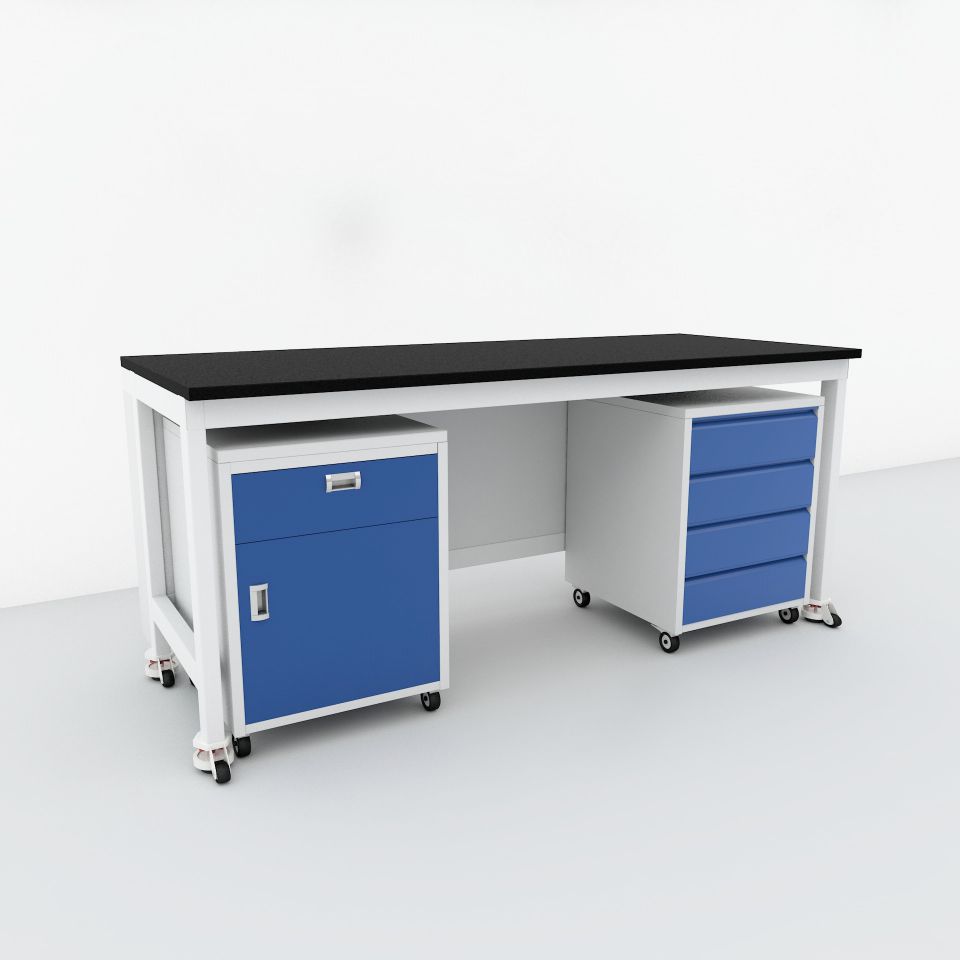

The H-Frame/Modular Lab Bench is supported by a solid H-Frame steel frame, connecting the upper and lower cabinet units and the countertop. Optional mobile cabinet, no cabinet and suspended cabinet structure.

Higher load-bearing capacity than C-Frame Lab Bench structure.

Compared to Floor Mounted Lab Bench, which install cabinets unit on the ground and are difficult to rearrange after installation, H-Frame Lab Bench allow lab personnel to easily reconfigure or customize lab layouts, and can be recreated using cabinet modular unit for a variety of layout.

SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16mm thickness

(2) Epoxy Resin countertop: 16/19/20/25mm thickness

(3) Ceramic countertop: 20mm thickness

(4) Trespa countertop: 13/16/19/20/25mm thickness

(5) Granite/Marble countertop: 20mm thickness

2. Frame&Accessories

(1) Frame: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth.

(2) Handle: Aluminum alloy/Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.

(3) Rail: DTC 16-inch three-section silent rail.

(4) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.

(5) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.

(6) Wheel for cabinet: High-quality PU mute universal wheel with brake, heavy load, high mechanical strength, shock absorption, wear resistance, no damage to the floor. A single wheel bears 120kg.

3. Option Cabinet Unit

①Wooden Cabinet Unit:

The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.

②Steel Cabinet Unit:

1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.

ADVANTAGES

1) Maximize Space

Mobile Modular Lab Bench can be arranged to leave no wasted space. Some combinations allow multiple configurations in a smaller area. Layout can be adjusted as needed, and unlike fixed casework, modular options can be moved with ease.

2) Provide Distanced Workstations to Personnel

In today’s uncertain times, it is important to have the ability to offer distanced work spaces.

Even if a lab or workspace was not created with this in mind, mobile modular components make layout changes much easier. Traditional custom floor mounted bench would be difficult to remove and relocate without significant downtime or costs.

3) Improved Lab Expansion Capability

One of the most attractive benefits for mobile modular casework is the ability to expand as needed. Unlike floor mounted bench, modular options can be changed as needed.

4) Ideal Lab Layout and Design

Modern lab design requires a combination of workspace optimization, efficiency and social distancing. (Especially at colleges and universities.) Mobile modular casework can adapt to fit workspace and personnel needs as lab design and layouts change with time.

5) Customization & Durability

The customization and quality of flexible casework is paramount. Solutions are made to last for years, and provide easy serviceability if required.

6) Price

Lab designers and architects must consider the full picture when pricing out modular casework. The total cost of ownership can be much lower than fixed casework. The amount of labor required for installation is lower, as are any floorplan modifications. Generally, modular can produce a lower initial cost for larger installations and sometimes smaller ones as well.

Summary:

If your lab or workspace requires flexibility and planning for future uncertainty, modular options are a great choice.

The reduced cost-of-ownership, faster lead and installation times make it a great choice for most projects.
