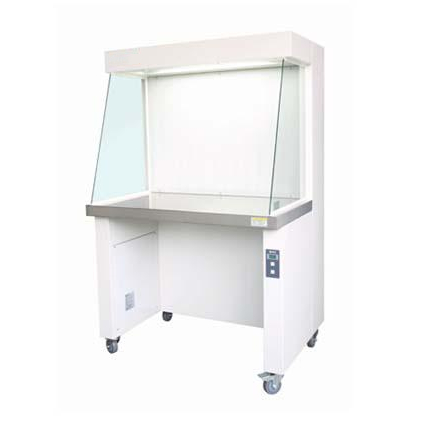

Laminar Flow Cabinet (Horizontal Ventilation)
The air is pressed into the static pressure box through the bottom primary air filter and low-noise centrifugal fan, and then filtered again by the HEAP on the back side, and blown evenly to the bottom of the work area, forming an horizontal air curtain with a high level of cleanliness, removing the original natural air in the work area, remove dust particles and biological particles to form a sterile high-clean working environment. The air velocity can be adjusted in three gears to ensure that the air velocity in the working area is always in a safe state.

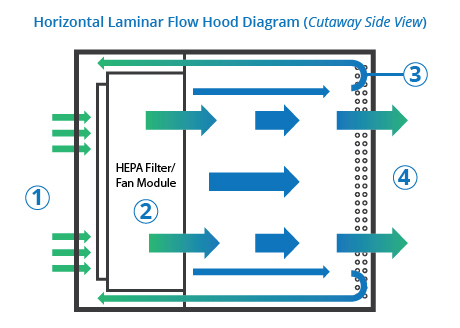

WORKING PRINCIPLE
The air is pressed into the static pressure box through the bottom primary air filter and low-noise centrifugal fan, and then filtered again by the HEAP on the back side, and blown evenly to the bottom of the work area, forming an horizontal air curtain with a high level of cleanliness, removing the original natural air in the work area, remove dust particles and biological particles to form a sterile high-clean working environment. The air velocity can be adjusted in three gears to ensure that the air velocity in the working area is always in a safe state.

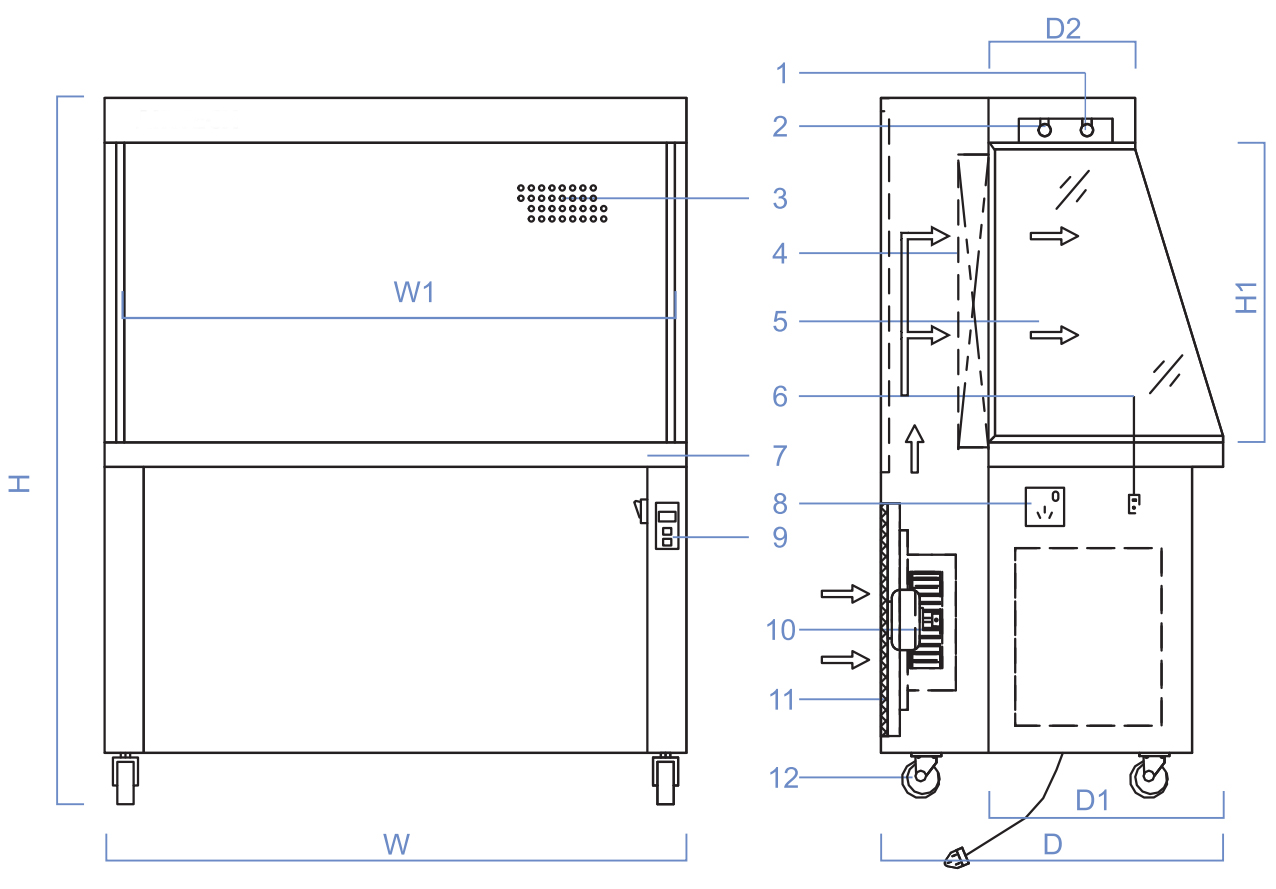

Laminar Flow Cabinet (Horizontal Ventilation)
1.Light 5.Side Glass 9.Controller
2.UV Lamp 6.Power Switch 10.Fan Unit
3.Air Diffuser 7.SUS Table 11.Pre-filter
4.HEPA Filter 8.Spare Electrical Outlet 12.Universal Wheel
SPECIFICATION
1. Digital display controller with soft key button, air velocity can be adjusted in 3 level and display fan, lighting and UV operating status.
2. UV lamp reservation can be set on and off, real-time display fan, UV lamp, filter cumulative running time.
3. The front-end is tilted design, each side is tempered glass.
4. Worktop adopts one-piece high-quality stainless steel, which is corrosion-resistant and easy to clean.
5. The outer box body is made of high-quality cold-rolled steel sheet and electrostatic powder coated with ivory white. It has strong anti-corrosion ability and can effectively inhibit bacterial growth on the surface of the cabinet.
6. Streamline shape decrease interference of airflow.
7. Universal caster with braking device, high-quality casters, flexible movement, convenient and reliable fixation.
8. Humanized pre-filters design make customers more convenient to change and clean.
9. Interlocking lighting and sterilization systems, with spare sockets design, Short circuit protection, safe and convenient to use.
10. Every clean bench is tested individually in according with international standard at factory for safety and performance.
11. Air inlet from top and horizontal laminar flow type for PIVAS center is optional.
Model | MAX-1B | MAX-1C | MAX-1BU | MAX-1CU | |
Cleanliness | 100 class≥0.5μm(G federal209E） | ||||
No.of Colony | - | ≤0.5cfu/Dish*0.5h | |||
Air Velocity | ≥0.3m/s(adjustable, Three level） | ||||
Noise | ≤62dB(A) | ||||
Vibration half speak value | ≤0.5μm(x.y.z direction） | ||||
≥300LX | |||||
Power supply | AC single phase 220V/50Hz | ||||
Rated power | 250W | 500W | 250W | 500W | |
Weight | 100KG | 160KG | 100KG | 160KG | |
Size & No.of HEPA Filter | 820x600x50x① (32.3''x23.6''x2.0''x ①) | 610x610x50x② (24.0''x24.0''x2.0''x②) | 820x600x50x① (32.3''x23.6''x2.0''x ①) | 610x610x50x② (24.0''x24.0''x2.0''x②) | |
Light | 18W*① | 36W*① | 18W*① | 36W*① | |
UV lamp (Option) | - | 18W*① | 36W*① | ||
Mode of Operation | Single/single side | Double/single side | Single/single side | Double/single side | |

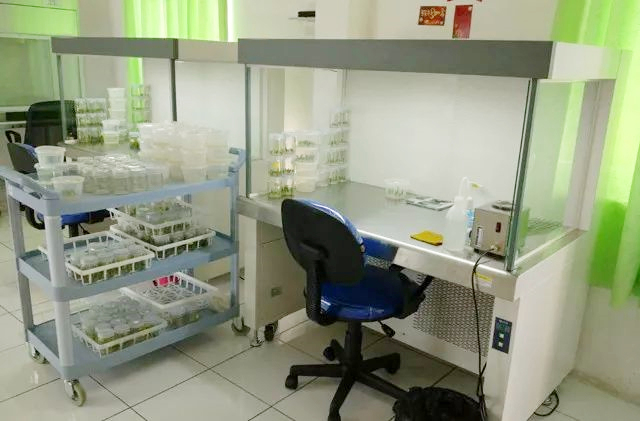

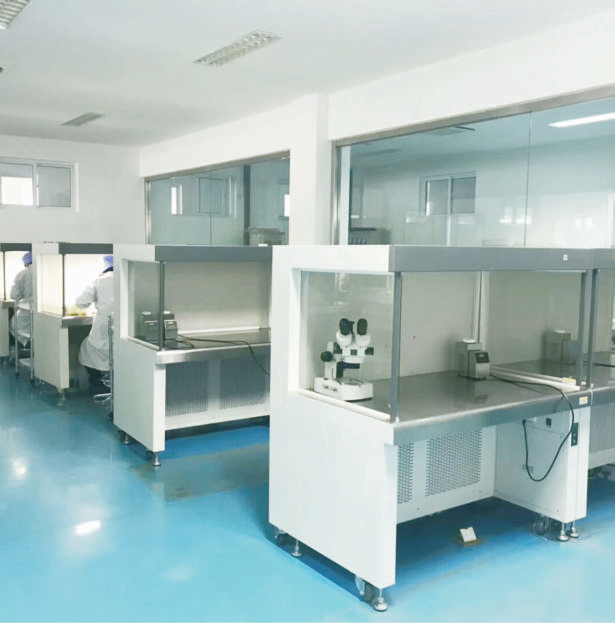

CASES
