Floor Mounted Lab Bench
The Floor Mounted Lab Bench is cabinet units support countertop, and the cabinet units are fixed by connecting rods.
This kind of structure has good load-bearing performance, and the load-bearing capacity can reach 500KG/m², which can meet the use requirements of large-scale precision instruments&equipment in the laboratory.
Cabinet unit is in direct contact with the ground to prevent dust from entering the bottom of the workbench, which is the first choice for dust-free laboratories.
Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If use wooden cabinet units, it will be expanded and deformed when it touches the damp ground.
The Floor Mounted Lab Bench is cabinet units support countertop, and the cabinet units are fixed by connecting rods.
This kind of structure has good load-bearing performance, and the load-bearing capacity can reach 500KG/m², which can meet the use requirements of large-scale precision instruments&equipment in the laboratory.
Cabinet unit is in direct contact with the ground to prevent dust from entering the bottom of the workbench, which is the first choice for dust-free laboratories.
Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If use wooden cabinet units, it will be expanded and deformed when it touches the damp ground.
SPECIFICATION
1. Countertops
(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16mm thickness
(2) Epoxy Resin countertop: 16/19/20/25mm thickness
(3) Ceramic countertop: 20mm thickness
(4) Trespa countertop: 13/16/19/20/25mm thickness
(5) Granite/Marble countertop: 20mm thickness
2. Cabinet&Accessories
(1) Cabinet: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature. and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
(2) Connecting rod: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth.
(3) Handle: Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.
(4) Rail: DTC 16-inch three-section silent rail.
(5) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.
(6) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.
· Durable
· High cost performance
· More storage space
· Easy to install
· Good load-bearing performance and excellent stability. Bearing up to 500KG/m²
Standard Dimensions
Product Name | Dimensions (L*W*H) |
Floor Mounted Wall Bench | L*750*850mm/Customize |
Floor Mounted Island Bench | L*1500*850mm/Customize |
Floor Mounted Corner Bench | 1000*1000*850mm/Customize |

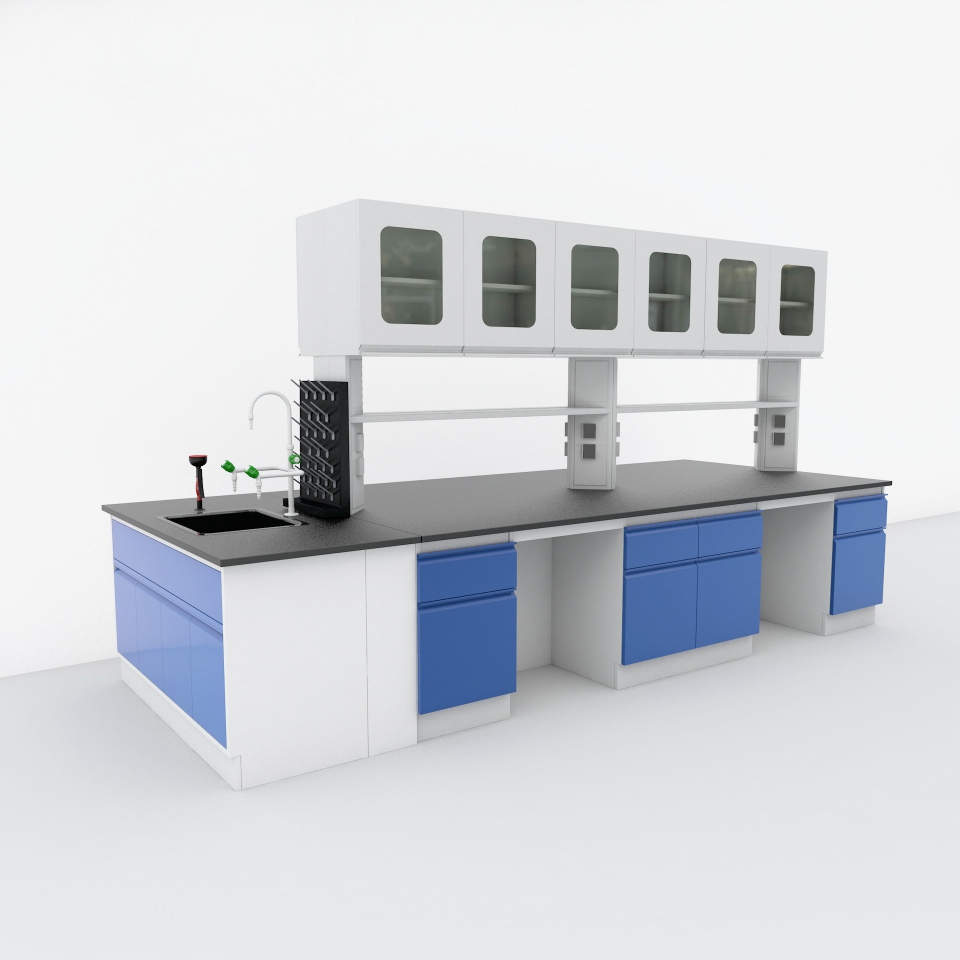

Floor Mounted Island Bench
LB-FM-01
LB-FM-02
LB-FM-03
LB-FM-04
LB-FM-05
LB-FM-06

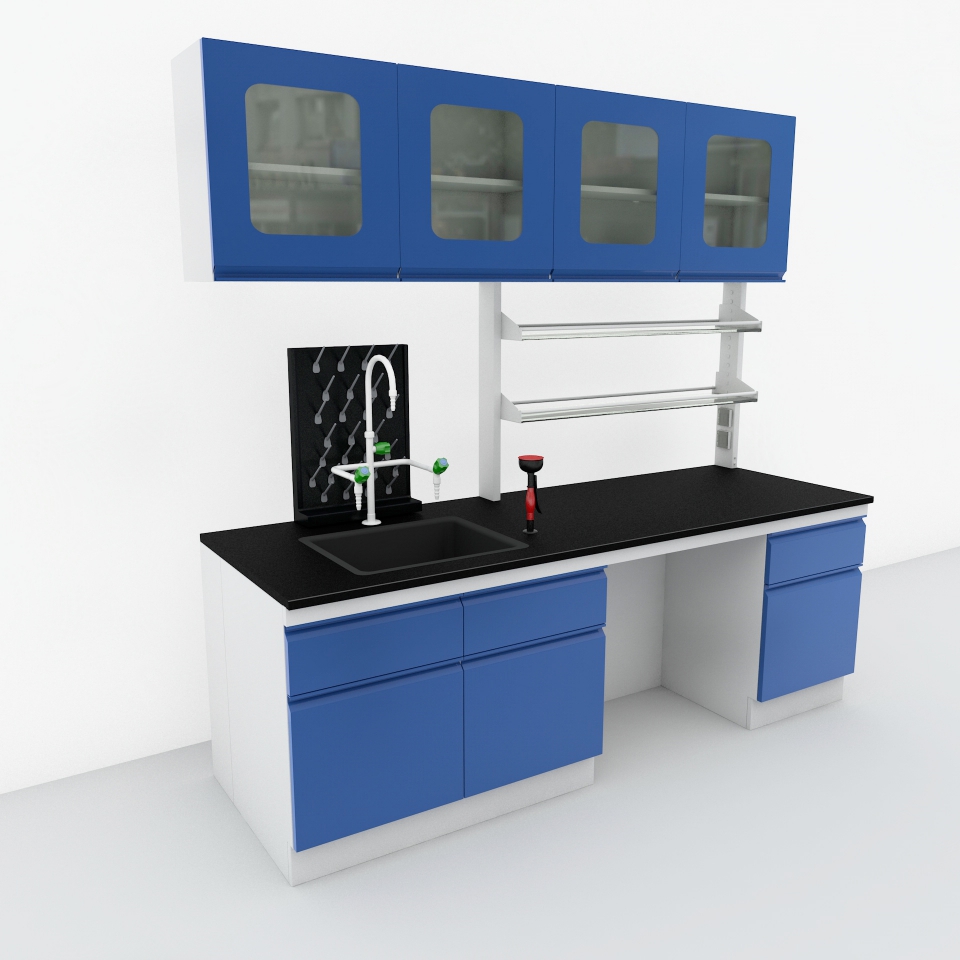

Floor Mounted Wall Bench
LB-FM-07
LB-FM-08
LB-FM-09
LB-FM-10
LB-FM-11
LB-FM-12

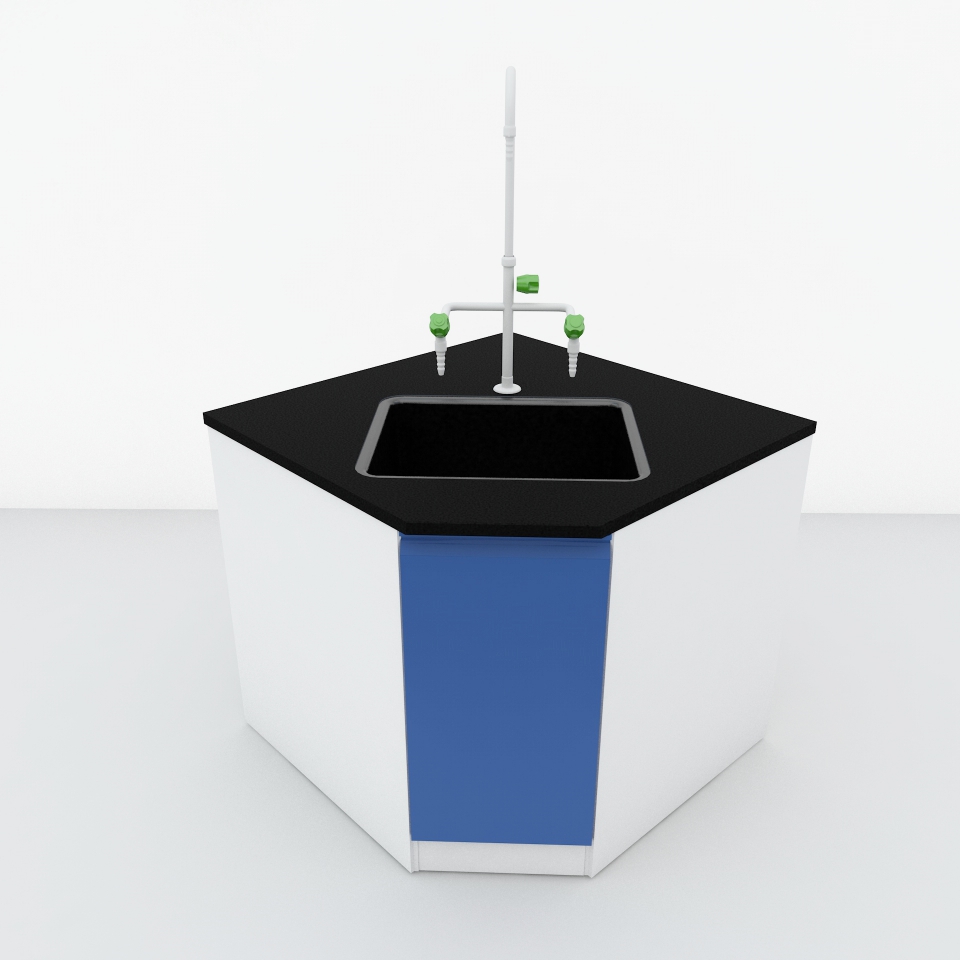

Floor Mounted Corner Bench
