15L/4 Gallons
Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.
To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength.
SAFETY CABINETS
Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.
To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength.
CLASSIFICATION
Flammable Storage Cabinet
Flammable cabinet protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets.
*Storage substances: alcohol, glue, gasoline, kerosene, crude oil, ethanol, benzene, thinner, wiper water, methanol (wood alcohol or wood spirit), etc.

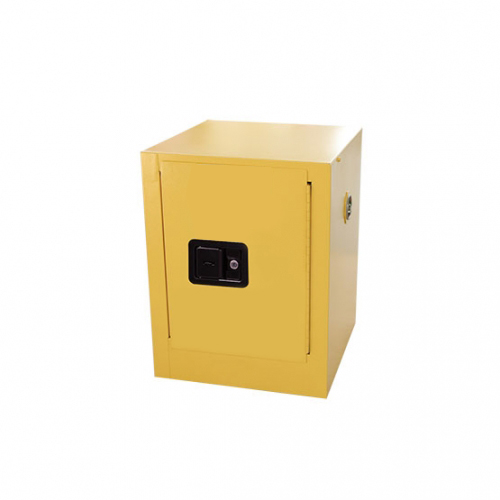

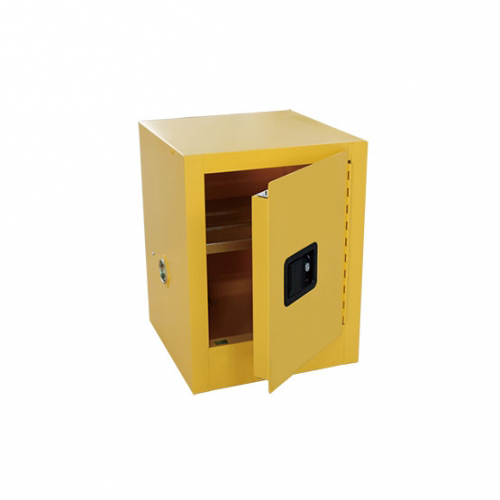

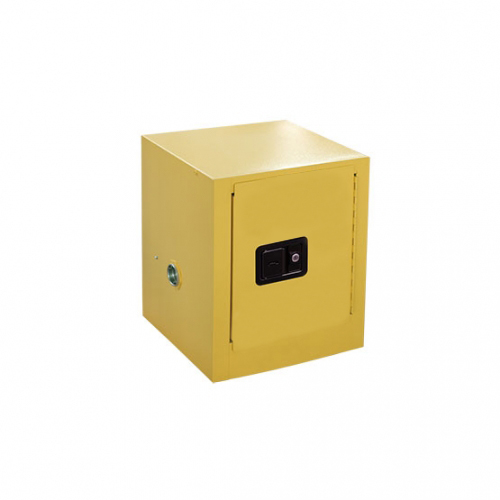

15L/4 Gallons
SPECIFICATION
(Yellow/Red/Blue/Green Cabinet, Grey and White cabinet is not included)
①The safety cabinet is constructed by double-wall 18 Ga (1.2-mm) steel sheet through spot welding, (38-mm) of insulating air space for fire resistance.
②Ventilation devices are set on the left and right sides to effectively reduce the concentration of volatile substances and prevent fire.
③Resin powder coating treatment, the surface is bright, dustproof, rustproof and moistureproof.
④The three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation.
⑤Cabinets feature a leakproof 2 in. (51-mm) bottom sump, dual vents with flame arresters.
⑥Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on (80-mm) centers for versatile storage, the maximum load-bearing capacity of the shelf is 100kg, each shelf is 8cm apart.
⑦The continuous piano hinge makes the cabinet door close and open smoothly.

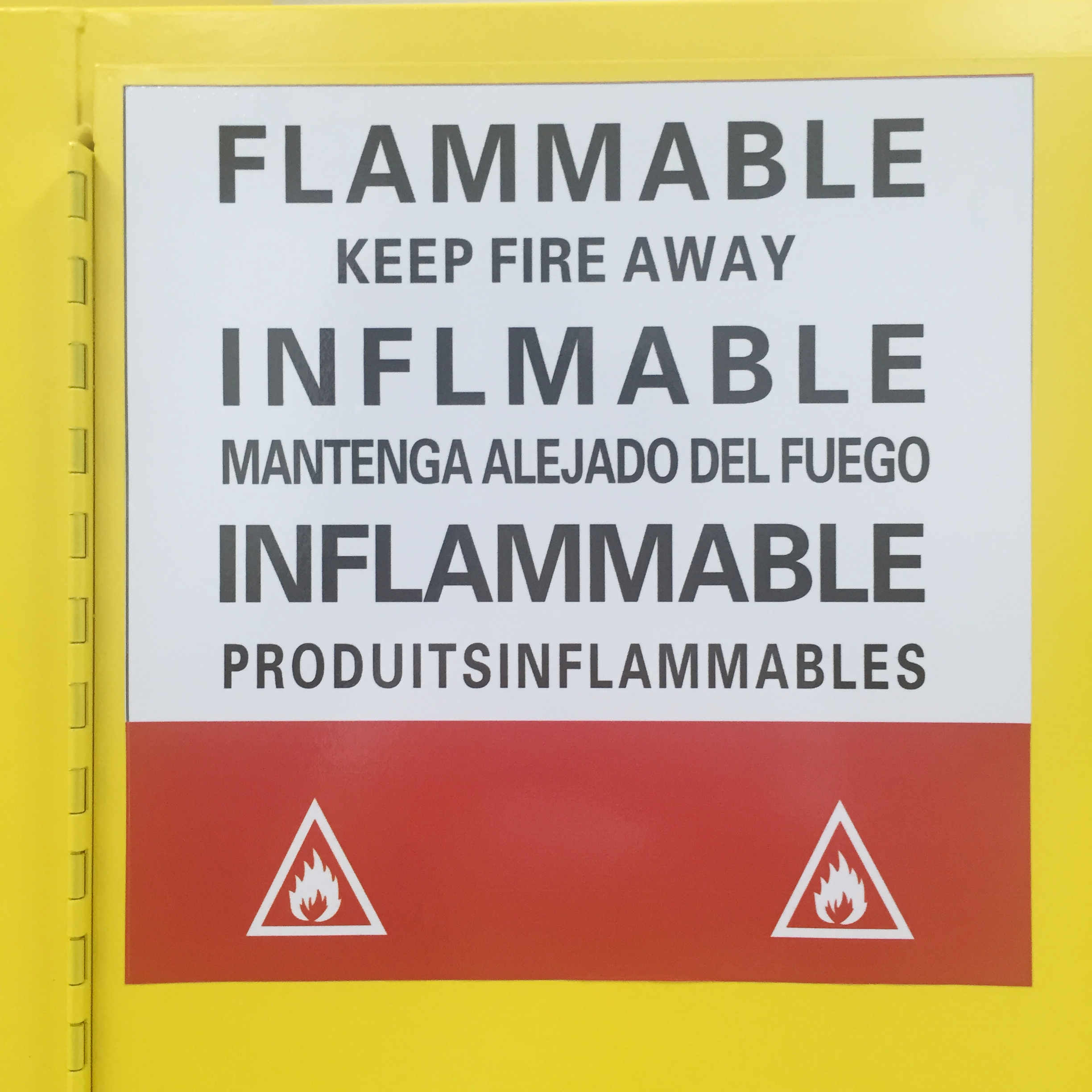

⑧The reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Model | Volume | Size(H*W*D)mm | NO.Door | Shelf Pcs | Shelf bearing |
SC-01 | 15L/4 Gallons | 560*430*430 | Single | 1 | 50Kg |
SC-02 | 38L/10 Gallons | 640*590*600 | Single | 1 | 50Kg |
SC-03 | 45L/12 Gallons | 890*590*460 | Single | 1 | 50Kg |
SC-04 | 83L/22 Gallons | 1650*600*460 | Single | 3 | 50Kg |
890*890*560 | Double | 1 | 50Kg | ||
SC-05 | 114L/30 Gallons | 1120*1090*460 | 1 | 50Kg | |
SC-06 | 170L/45 Gallons | 1650*1090*460 | Double | 2 | 100Kg |
SC-07 | 204L/54 Gallons | 1650*600*870 | Single | 3 | 100Kg |
SC-08 | 227L/60 Gallons | 1650*860*860 | Double | 2 | 100Kg |
SC-09 | 340L/90 Gallons | 1650*1090*860 | Double | 2 | 100Kg |
Yellow√ Red√ Blue√ Green√ | |||||
PRODUCT DETIALS
Fire and explosion vent Isolation fireproof cotton Anti-static design of
three-point linkage lock
Integrated strong safety door Adjustable shelf Reflective label

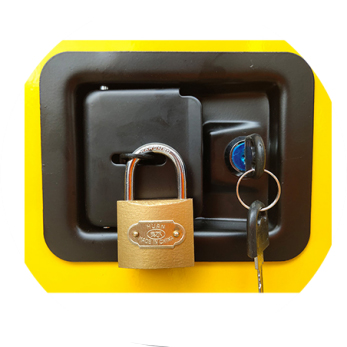

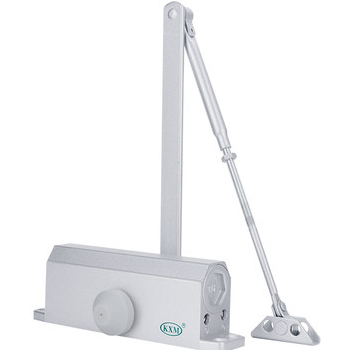

Anti-static device Door Closer(Optional) Secure padlock configuration(Optional)
