SPECIFICATION

*1. Hood body&base cabinet: Use galvanized steel sheets ≥1.2mm, electrostatically sprayed with epoxy resin, and covered with durable anti-chemical lead-free coating to maintain high finish and minimize the impact of corrosion and moisture.

*2. Front sash and side sash: Use ≥6mm acrylic sheets, which has excellent weather resistance, excellent chemical resistance, not easy to age, colorless and transparent, transparent throughout, visual comfort, and beautiful appearance.

*3. Seven-inch LCD touch screen display, high-definition display resolution 1024*600, perfect visual system.

*4. Real-time temperature and humidity environment monitoring system, display temperature and humidity, set alarm parameters, and ensure the safety of product use.

*5. Fan monitoring: fan system failure alarm, online adjustable fan speed, to ensure the required air volume for different chemical operations.

*6. Filter saturation alarm system: The product is equipped with double-layer filters and dual VOC probes. One probe monitors the indoor air quality, and one probe monitors the filter saturation status. The filter sets the saturation alarm value. If the concentration exceeds the set value for a long time, the filter needs to be replaced.

*7. PSC fan imported from the United States, 24 volts, stable performance, ultra-quiet, no spark static.

*8. The high-efficiency filtration system, according to the particle size, selects the arrangement and distribution, follows the ASTM standard, effectively targets acidic gases and organic gases, and has strong adsorption capacity. The high-efficiency HEPA filter is used for particles, and the filtration efficiency is 99.995% for particles larger than 0.3um.

*9. The power of LED lighting lamp is equivalent to 25W fluorescent lamp, which does not generate heat, safety does not affect the temperature of the experimental environment, energy saving, environmental protection and long life.

*10. Epoxy resin work surface have excellent chemical stability, super corrosion resistance, good impact resistance without damage, excellent high temperature resistance, integrated core penetration, long service life, no delamination, no expansion, no cracking .

*11. With the function of process monitoring, customers can view the operating status of the equipment in real time through the mobile client, and can remotely set operating parameters. When the device alarms, the alarm information can be pushed through the client.

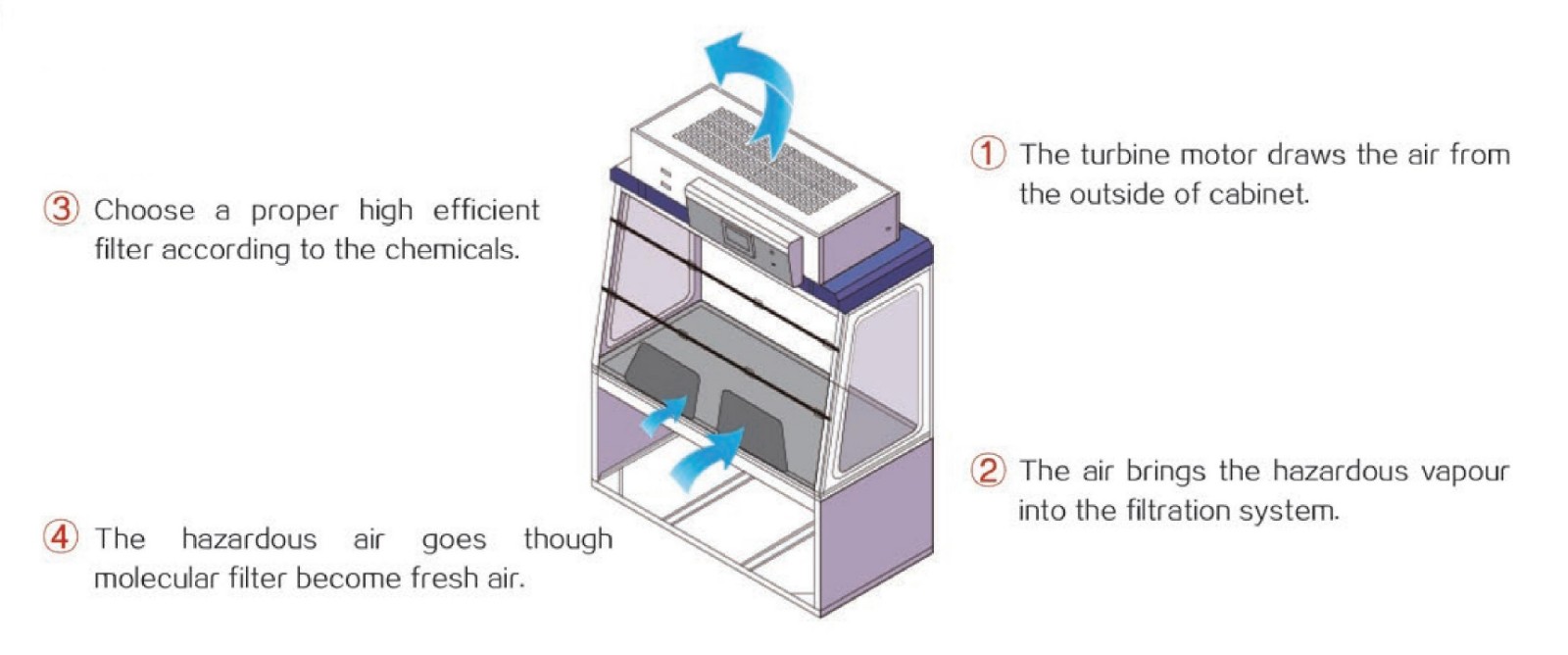

WORKING PRINCIPLE
