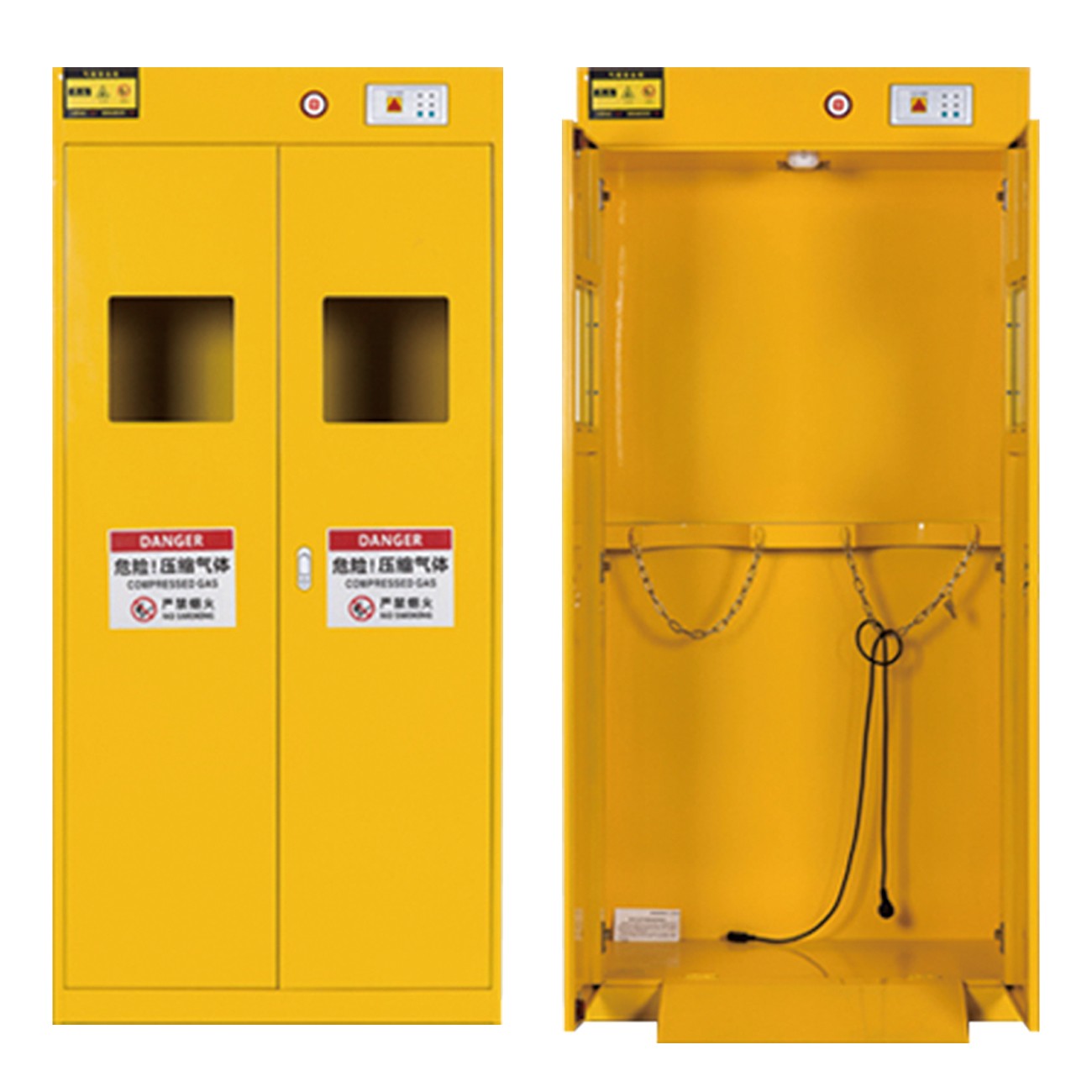

Double Gas Cylinder
Gas cylinder cabinets are used to improve local exhaust ventilation, to protect cylinders (gas cylinders) from fire outside the cabinet and to protect the surrounding objects from internal fires.
SPECIFICATION
GCC-12
Model | GCC-01 | GCC-11 | GCC-02 | GCC-12 | GCC-03 | GCC-13 |
Cylinder number | 1 | 2 | 3 | |||
Size (mm) | 500*450*1900 | 900*450*1900 | 1200*450*1900 | |||
Color | Grey/yellow | |||||
Material | 1.0mm High quality cold rolled steel sheet | |||||
Surface | Epoxy resin powder coating | |||||
***GCC-11/GCC-12/GCC-13 include alarm device.
TYPE
DETECTION ALARM SYSTEM
CONTROLLER
Power on
After the power is turned on, the controller will conduct a self-check, at this time all the indicators are on, the alarm window is on, the fan and the alarm are turned on, this process will last for 5 seconds, and it will enter the working state after the end. The system will detect the sensor, and the monitoring will be invalid during detection.
Monitor Mode Status
After the power is turned on, tap "Monitor", the buzzer will beep once, and the monitoring light will indicate. If the system is powered on within a few seconds, the system will automatically test for 10 seconds. At this time, the alarm will be exhausted or the button will be invalid, and the test will be performed for 10 seconds. After the test, the system enters the normal monitoring state. When receiving the signal of leaking smoke gas, it outputs the control signal to alarm and exhaust.
Timed Mode Status
Touch the "Time Control" button, the buzzer will beep once, the "Exhaust" light will be on, and the controller will automatically start to enter the timing exhaust. The exhaust time is 5 minutes, the stop exhaust time is 20 minutes, and the cycle is cycled.
Monitor Mode Status
When the alarm occurs, it is necessary to check the gas leakage. Only press the "Monitor" button to stop the alarm. After the gas environment is restored, turn on the monitoring again. After the sensor detects the alarm gas, the sensor needs a certain recovery time, and the alarm may still be generated if it is turned on again immediately. At this time, please cancel the monitoring and turn it on after half an hour. If necessary, please re-power the sensor to warm up the sensor.
Sensitivity adjustment
Due to differences in environment and requirements, sensitivity adjustment is supported. During self-test, press the "Time Control" button at the same time, and enter the sensitivity setting after hearing "Di Di Di Di". "Time Control" button to adjust the sensitivity, "Monitor" button to confirm and exit. The system supports 8-level sensitivity adjustment. The blinking and steady light of the four indicators correspond to a state respectively. The sensitivity is the highest when only one indicator light is flashing, and the lowest when the four indicator lights are always on.
FEATURE
COLOR
YELLOW GREY
APPLICATION RANGE
Gas cylinder cabinets are safety protection cabinets for storing various types of dangerous gases, and are also a category of industrial safety cabinets. At present, in many factories, in the production workshop, or in the daily production process, different types of gases, such as methane, gas, hydrogen, oxygen, inert gas, etc., are used, which are dangerous flammable and explosive gases. It is necessary to use a professionally produced storage container that meets safety standards, that is, a gas cylinder with an alarm function.
