FE-13
Joint: High grade PP material, to be 360° swiveled, easy for disassembly, cleansing and re-assembly swiftly.
Tube&Installation Bracket: Made by Aluminium alloy, fastness, corrosion resistance.

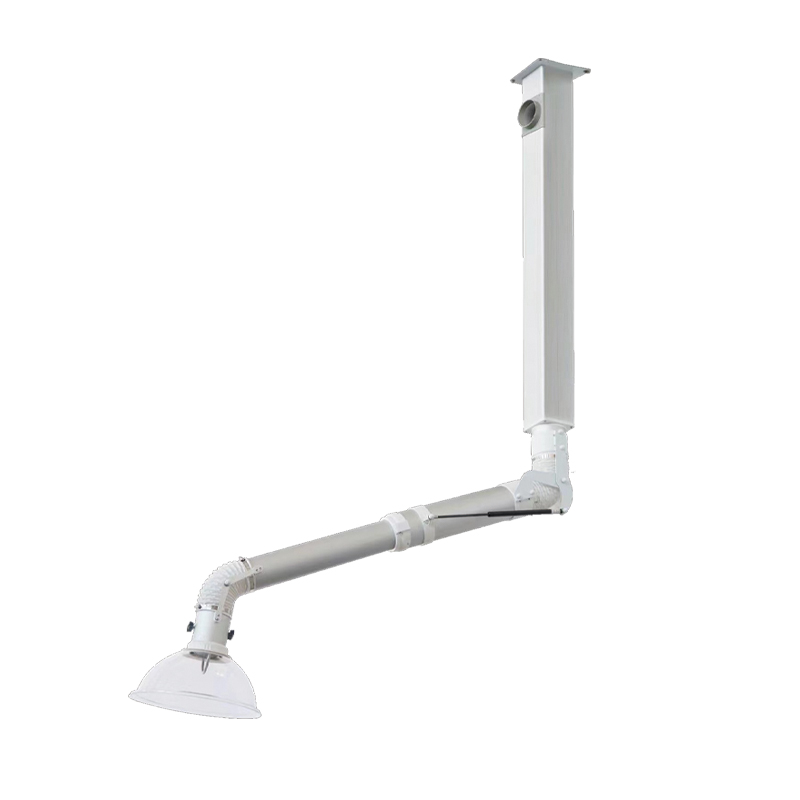

Fume Extractors
FE-13
(Tube&Bracket: Aluminium)
SPECIFICATION
Joint: High grade PP material, to be 360° swiveled, easy for disassembly, cleansing and re-assembly swiftly.
Tube&Installation Bracket: Made by Aluminium alloy, fastness, corrosion resistance.
Control device: Pneumatic struts are used to control the height, and the inner and outer aluminum alloy tubes are telescopic to control the length of airflow.
Sealing ring: Corrosion-resistant high-density rubber.
Center bolt: 304 stainless steel.
Adjustable joint knob: All stainless steel bearings to prevent rust from locking.
Damper: To just air flow with a knob manually.
Dome/cup hood: High Grade PP/PC.
Swing device: with 360° swing device, take fixed rack as centre.

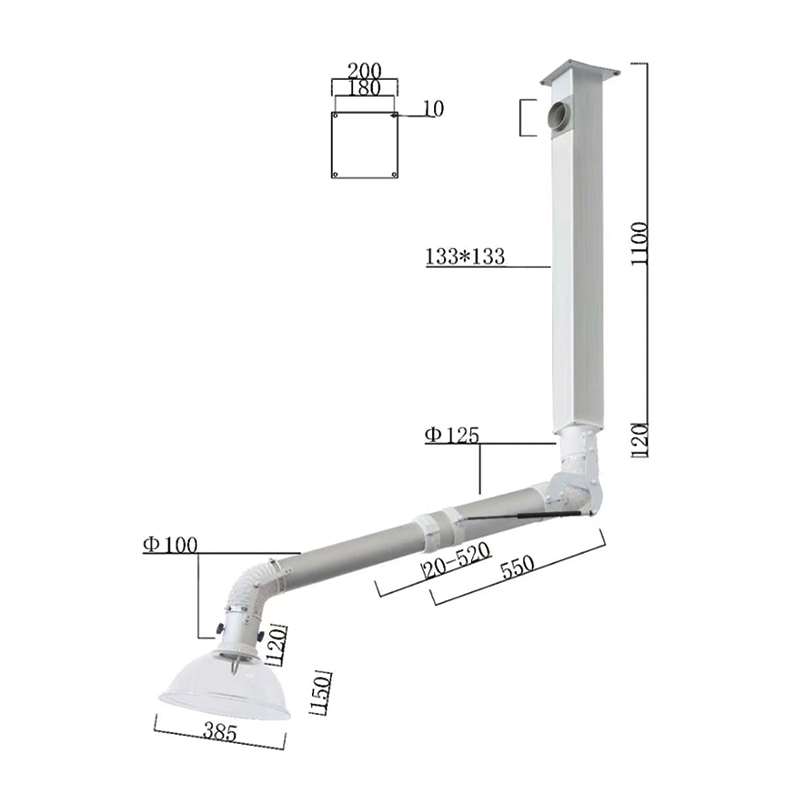

Max enabing movement radius: 1350mm, and the total length is 2850mm.
