FE-02
Joint: High grade PP material, to be 360° swiveled, easy for disassembly, cleansing and re-assembly swiftly.
Sealing ring: Corrosion-resistant high-density rubber.

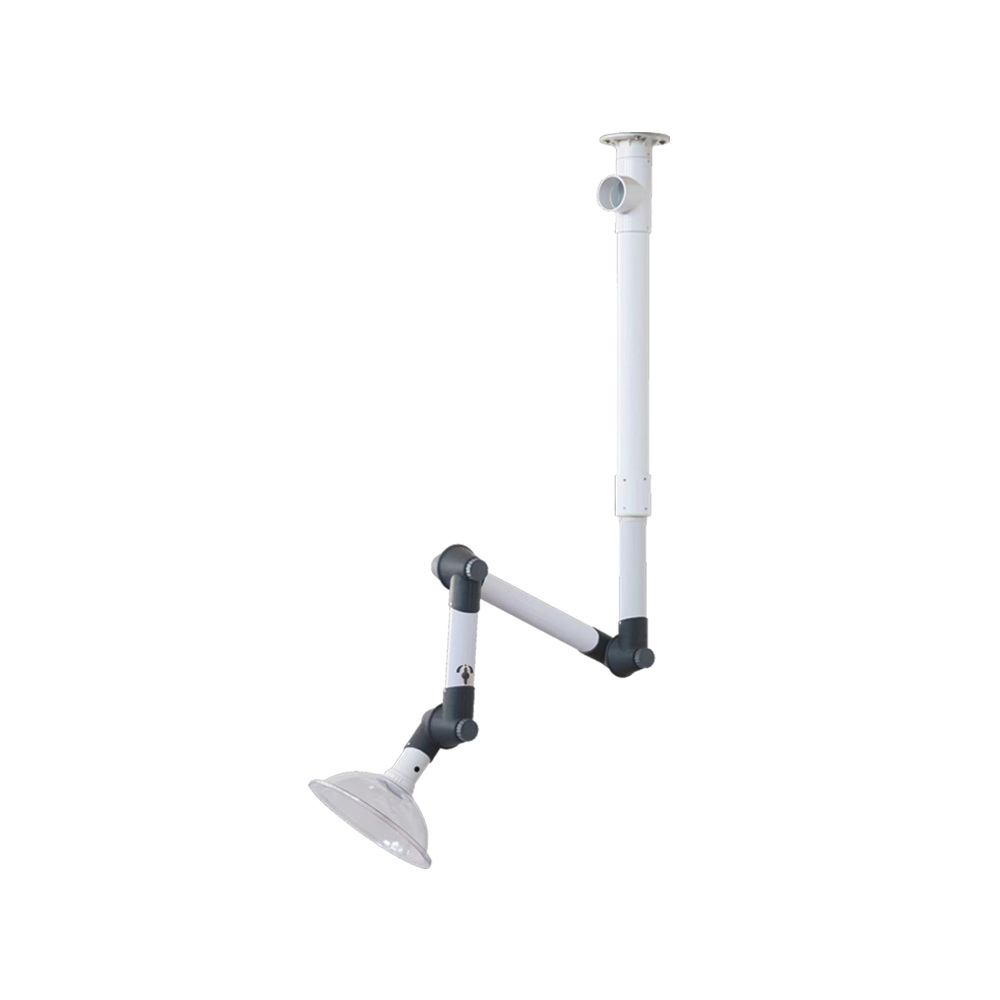

Fume Extractors
FE-02
(Tube: PP) (Bracket:PVC)
SPECIFICATION
Joint: High grade PP material, to be 360° swiveled, easy for disassembly, cleansing and re-assembly swiftly.
Sealing ring: Corrosion-resistant high-density rubber.
Center bolt: 304 stainless steel.
Adjustable joint knob: All stainless steel bearings to prevent rust from locking.
Damper: To just air flow with a knob manually.
Dome/cup hood: High Grade PP/PC.

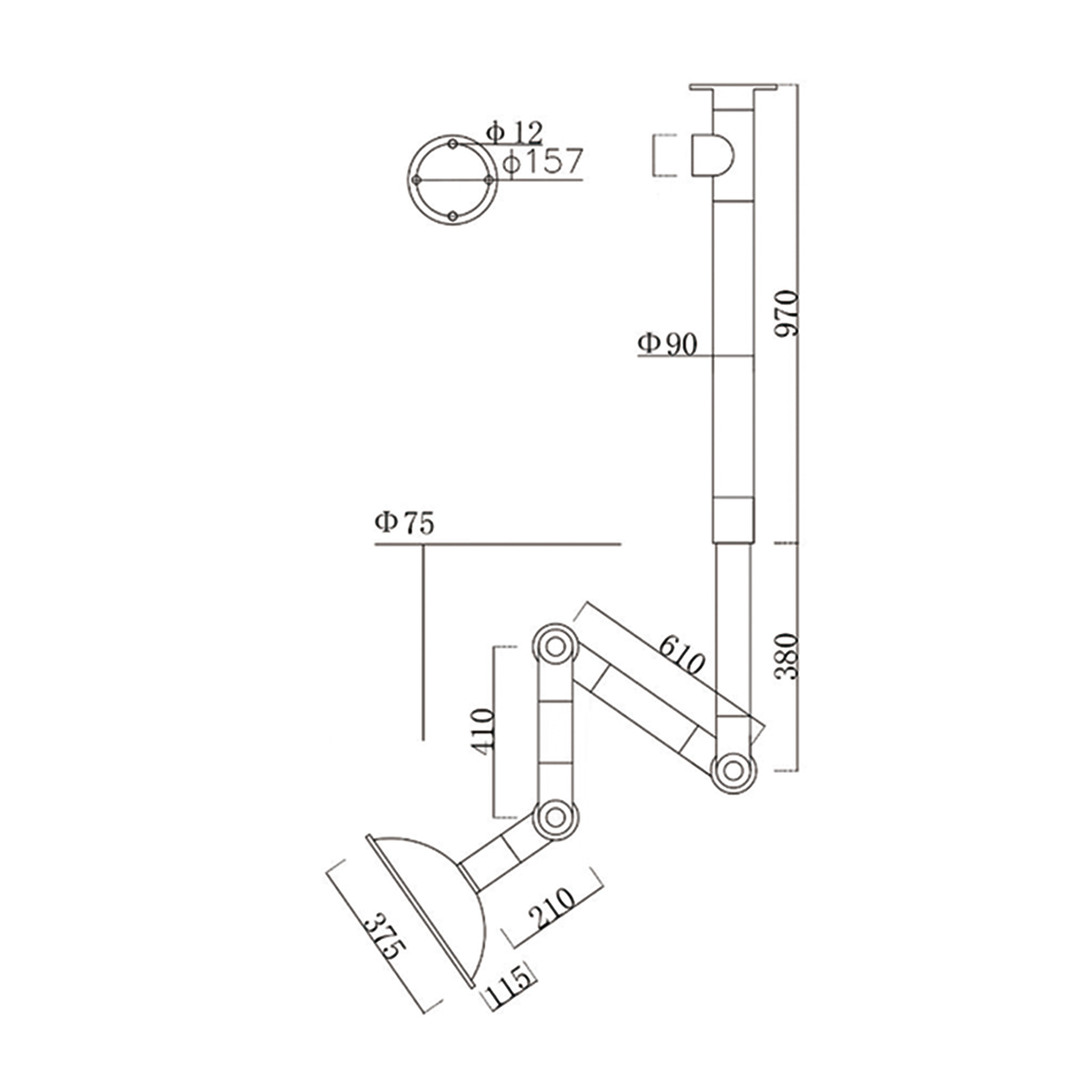

Tube: Φ75/110mm, PP/PVC/Aluminium alloy/304 Stainless steel.
Swing device: with 360° swing device, take fixed rack as centre, max enabing movement radius to 1350mm, and the total length is 2800mm.
Installation Bracket: Injection of plastics from a complete Mold, mounting panel strongly connected to the joint.
