EW-24
A combination emergency shower and eyewash station is cut out to flush harmful contaminants and pathogens out of the eyes and body in any environment, yet saves a lot of space. This combo merges a shower head and eyewash into one unit for a superior washdown and more even spray pattern.
Combination Eyewash Showers

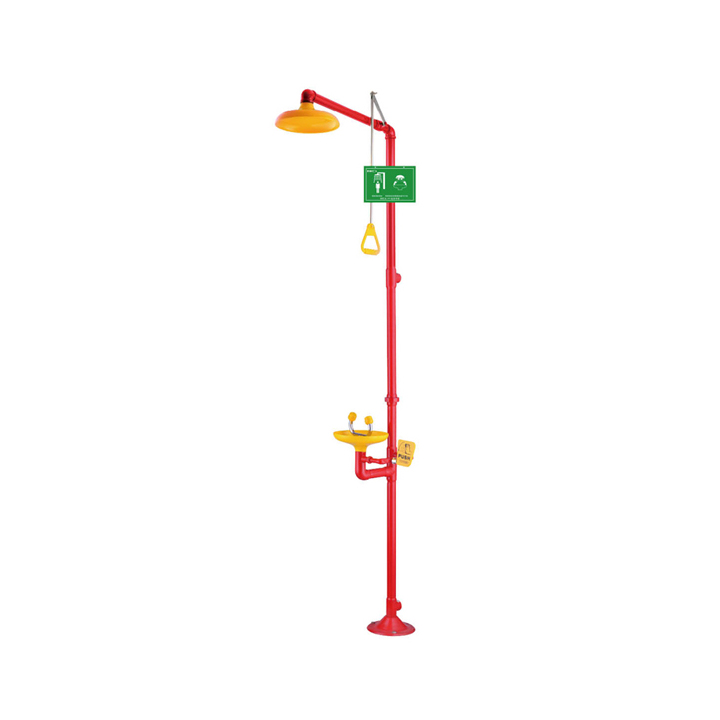

EW-24
Combination Eyewash Showers
(Pull&Push Type) (Red Coated)
SPECIFICATION
Material: Stainless Steel and ABS
Surface finishing: glossy epoxy coated
Usage: drenching body and rinsing faces/eyes can be operated separately or simultaneously
Shower & eye wash switch : SS304 ball valve
Shower head and eye wash bowl: ABS, diameter 250 mm
Pipe diameter: 42 mm
Nominal pressure: 1.0 Mpa
Working pressure: 0.2~0.4 Mpa
Testing pressure: 1.5 Mpa
Temperature requirement on working environment: 0°C~40°C
Flow rate of body shower: ≥76 L/min
Flow rate of eye/face wash: ≥11.4 L/min
Flow rate of eye wash: ≥1.5 L/min
Dust cover: integrated with the spray head (not connected by chain)
Inlet thread: Rp 1”,female
Outlet thread: Rp1",female
Inlet height (from above the floor): 1500 mm
Outlet height (from above the floor): 130 mm
Distance between spray heads: 170 mm
Water pattern coverage: at the height of 1524 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
Executive standard: ANSIZ358.1-2014 (American Standard)
