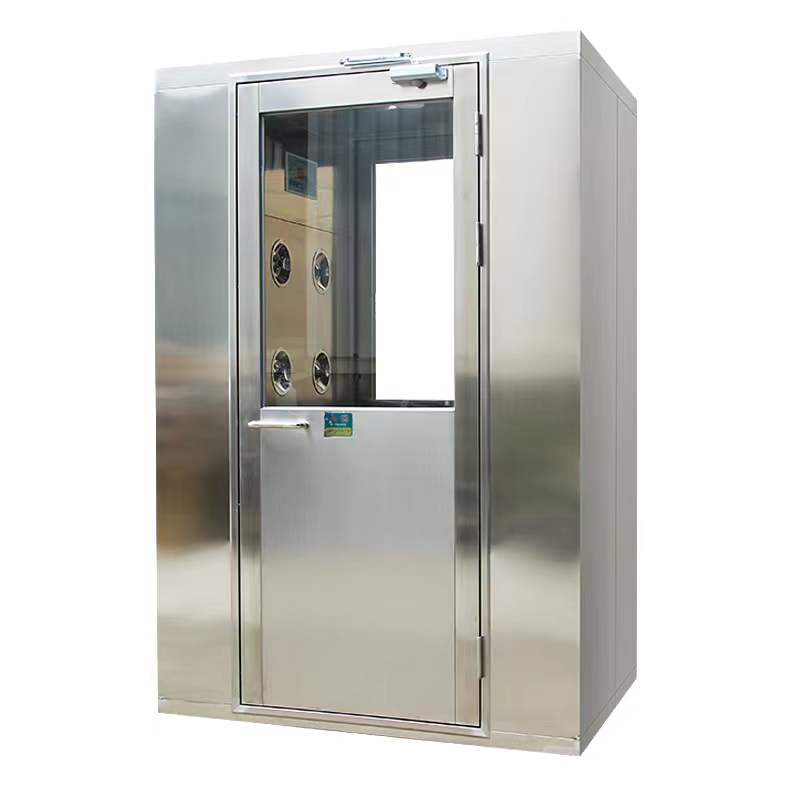

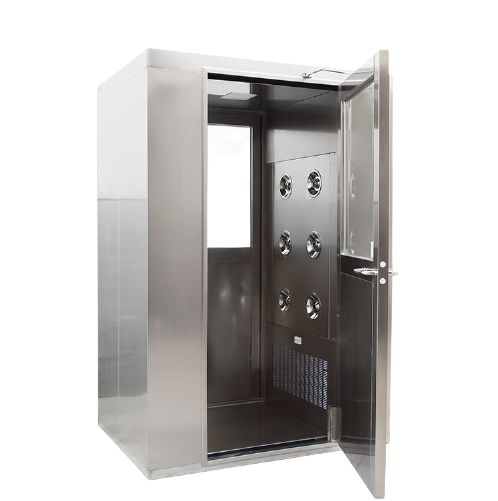

Air Shower
Air Showers are self-contained chambers installed strategically at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space to mitigate the risk for cross-contamination.
AIR SHOWER
Air Showers are self-contained chambers installed strategically at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space to mitigate the risk for cross-contamination.
Air Showers have become an integral component of the modern cleanroom because their benefits more than pay for the small amount of space they occupy.
Using objects: Personal air shower/Cargo shower room series;
Airflow: Single-side/Double-side/Top/other combinations;
Air shower doors: Manual doors/automatic doors etc.
Blowing method: Single person single airflow/Single person double airflow/Single person triple airflow/Double person double airflow/Double person triple airflow/Multiple person Double blow/Multiple people three blow.
Air Shower Construction:
①: All Stainless steel (304/316)
②: Stainless steel internal and cold-rolled steel external.
SPECIFICATION
AS-01 | AS-02 | AS-04 | ||
Single person Double blowing | Single person Double blowing | Double person Double blowing | Double person Double blowing | |
Persons per Cycle | 1 | 2-3 | 2-3 | |
External Construction | ① 1.2mm cold rolled steel sheet (Electrostatic paint) | |||
Internal Construction | 304/316# stainless steel | |||
Channel bottom plate | 304/316# stainless steel | |||
Door | 5mm tempered glass window | |||
Interlocking function | Adopts fully automatic control operation, double-door electronic interlocking, induction automatic blowing. | |||
Filtration Efficiency | ≥0.3um at ≥99.99% | |||
Filtration Elements | HEPA Filter | |||
HEPA Filter Size&Qty | 610*610*90x1 | 610*610*90x2 | 610*610*90x2 | |
Initial Airflow Velocity | 18-25m/s | |||
Nozzle | 304/316# stainless steel | |||
Number of Nozzles | 12 | 24 | 24 | |
Fluorescent Lamp | 17 W x 2 | 17 W x 4 | ||
Air Shower Duration | 0~99 seconds (adjustable), Initial setting 10s | |||
Power | ||||
Rated power (KW) | 1.1 | 1.5 | 2.2 | 2.5 |
External Dimensions (W*D*H)mm | 1240*1000*2040 | 1290*1000*2040 | 1240*1500*2040 | 1290*1500*2040 |
Internal Dimensions (W*D*H)mm | 790*860*1890 | 780*860*1890 | 790*1360*1890 | 790*1360*1890 |

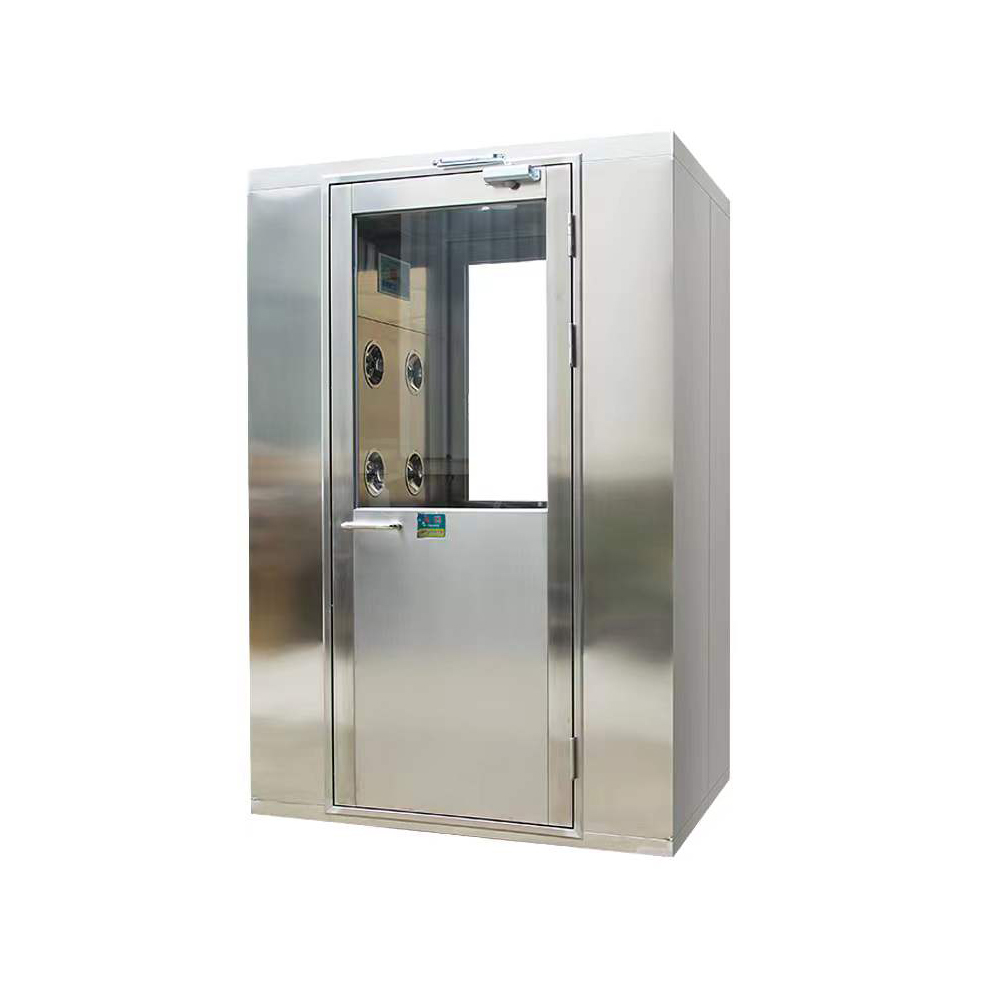

Two Construction are available

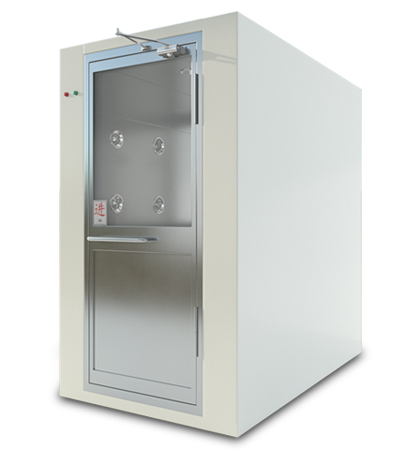

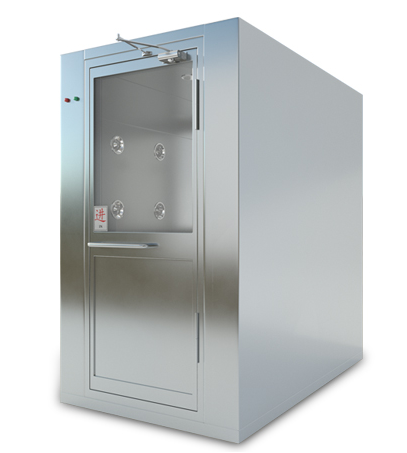

External Construction: Cold rolled steel sheet (Electrostatic paint) External Construction: Stainless steel
Internal Construction: Stainless steel Internal Construction: Stainless steel
BLOWING TYPE
Single Side Blowing Two Side Blowing Three Side Blowing
*With Top Blowing
OPTIONAL EAS SHUTTER DOORS

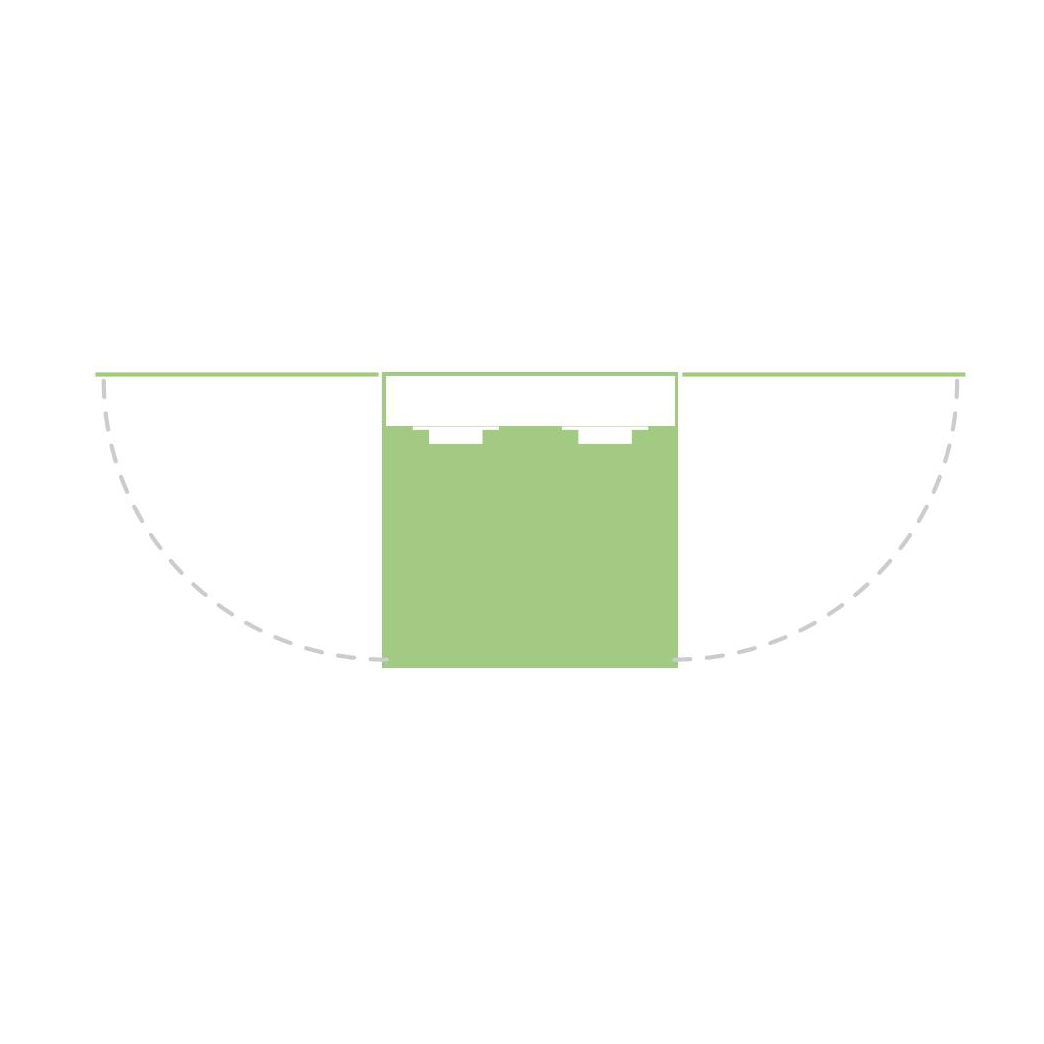

Single Double

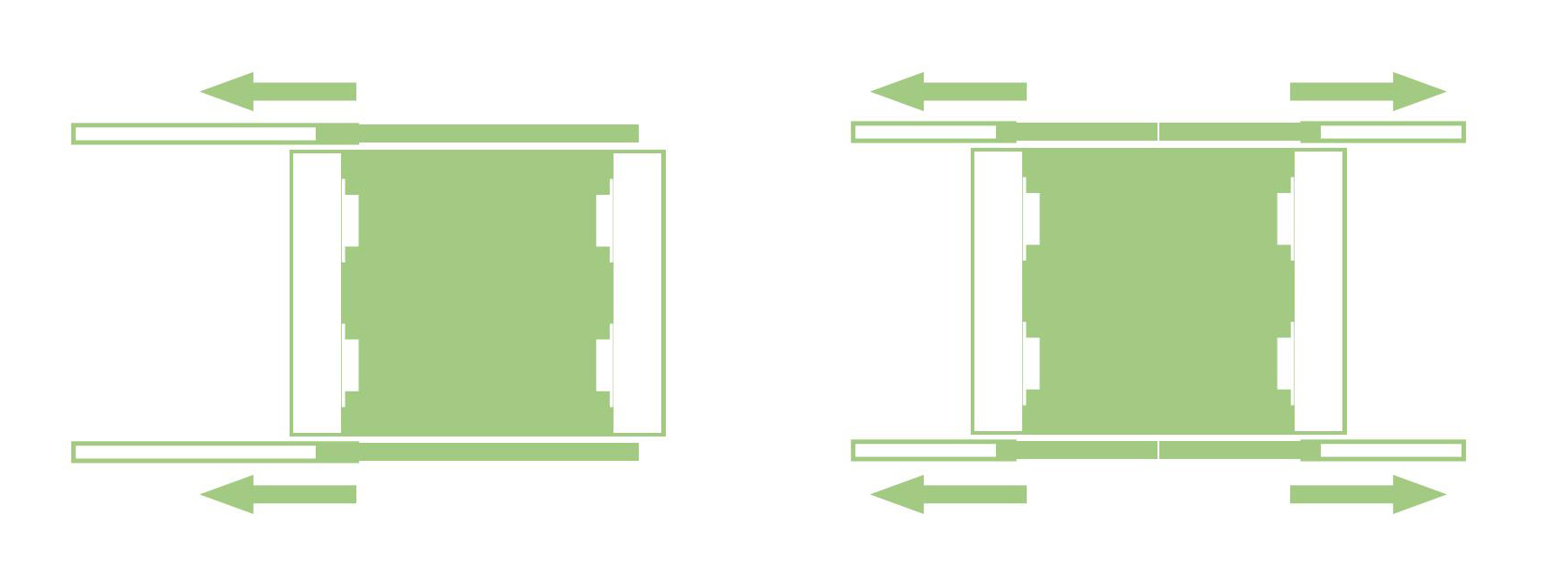

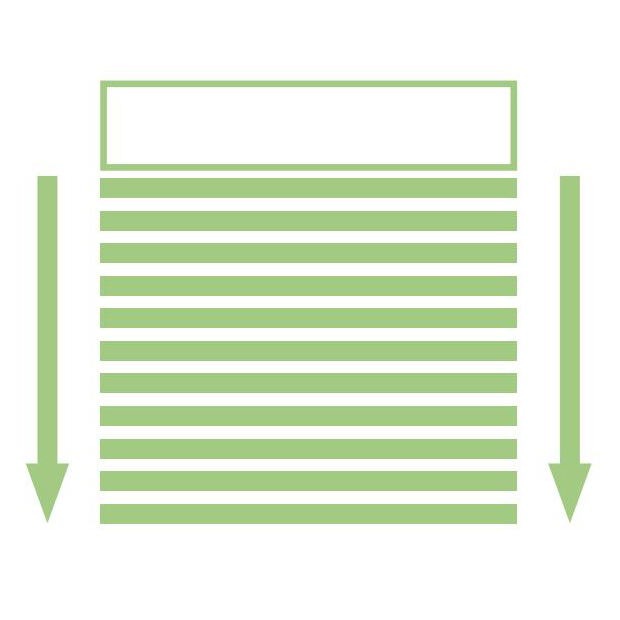

Vertical Shutter Door Auto Sliding Door Auto-swing Door

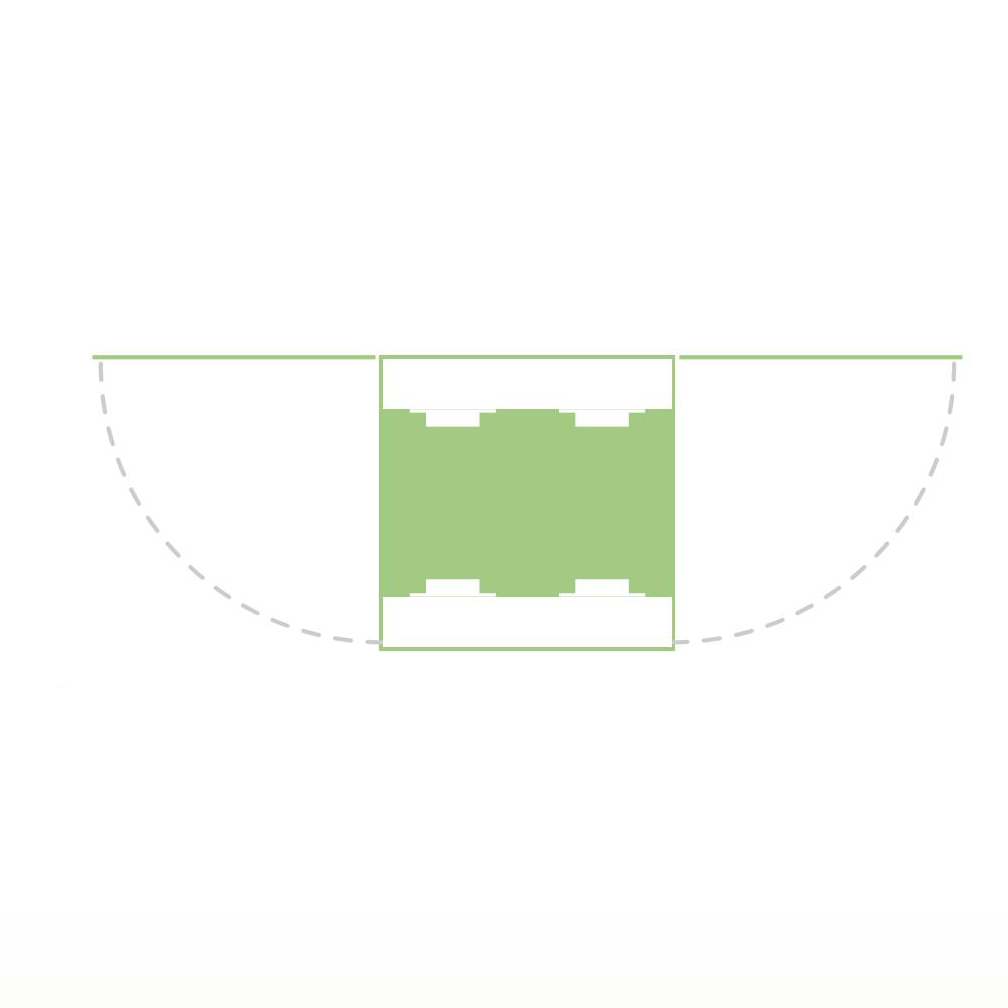

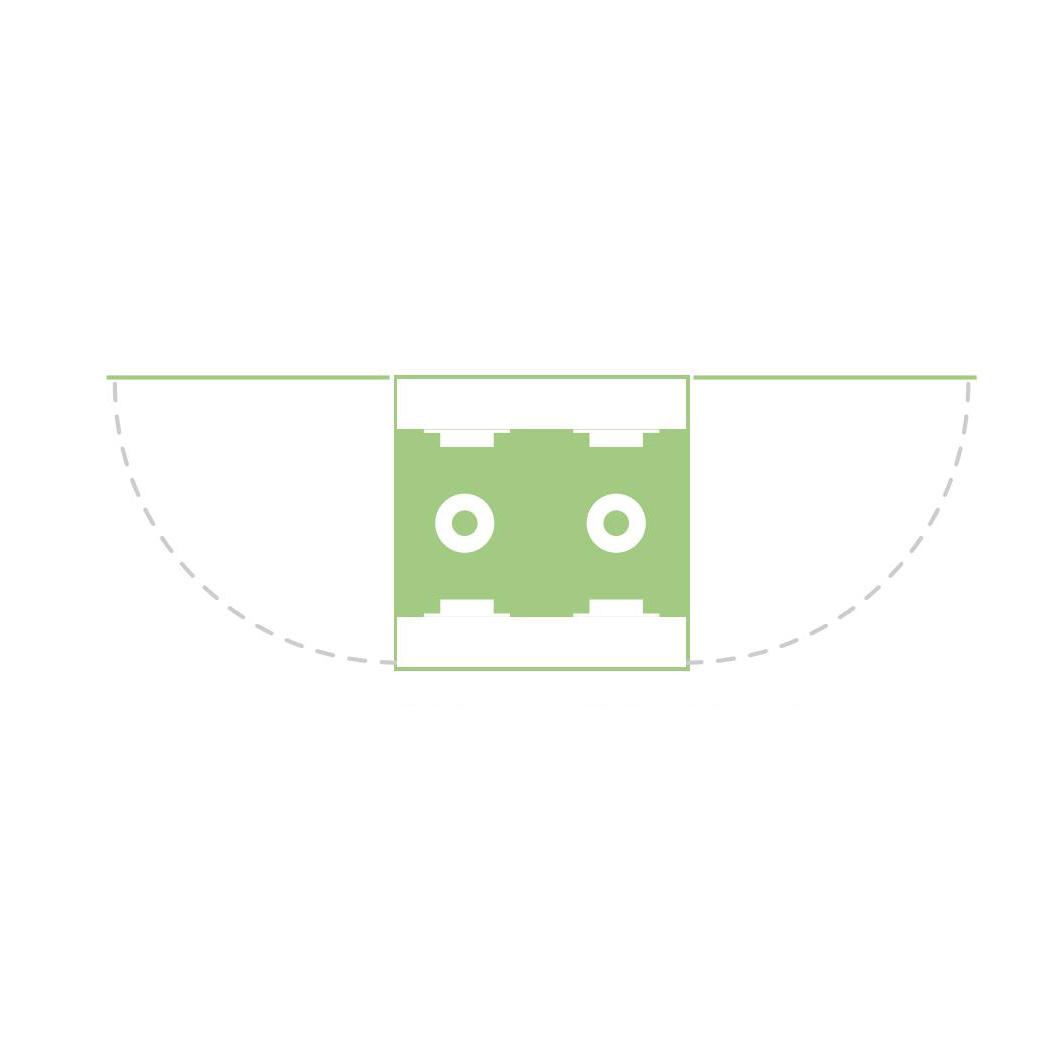

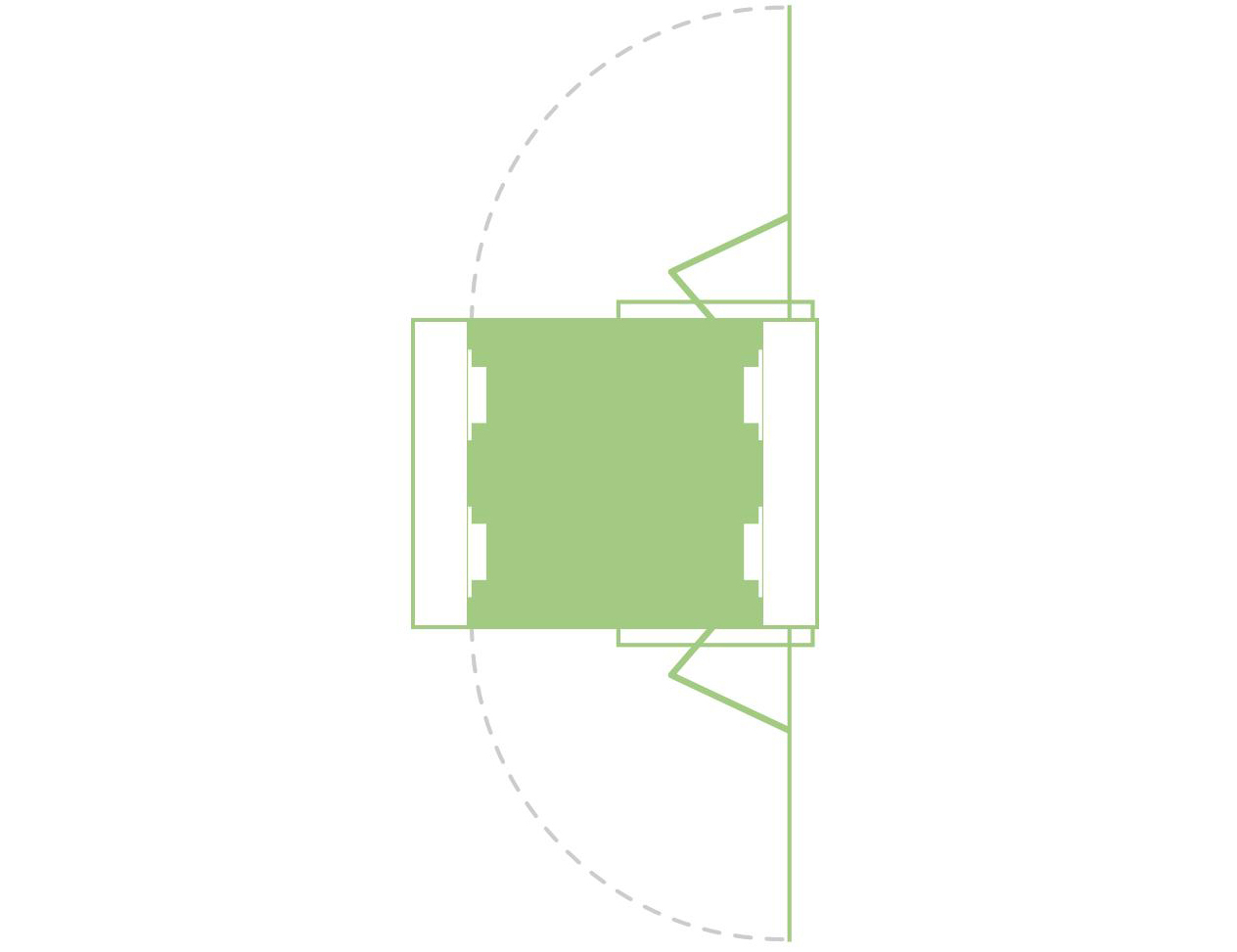

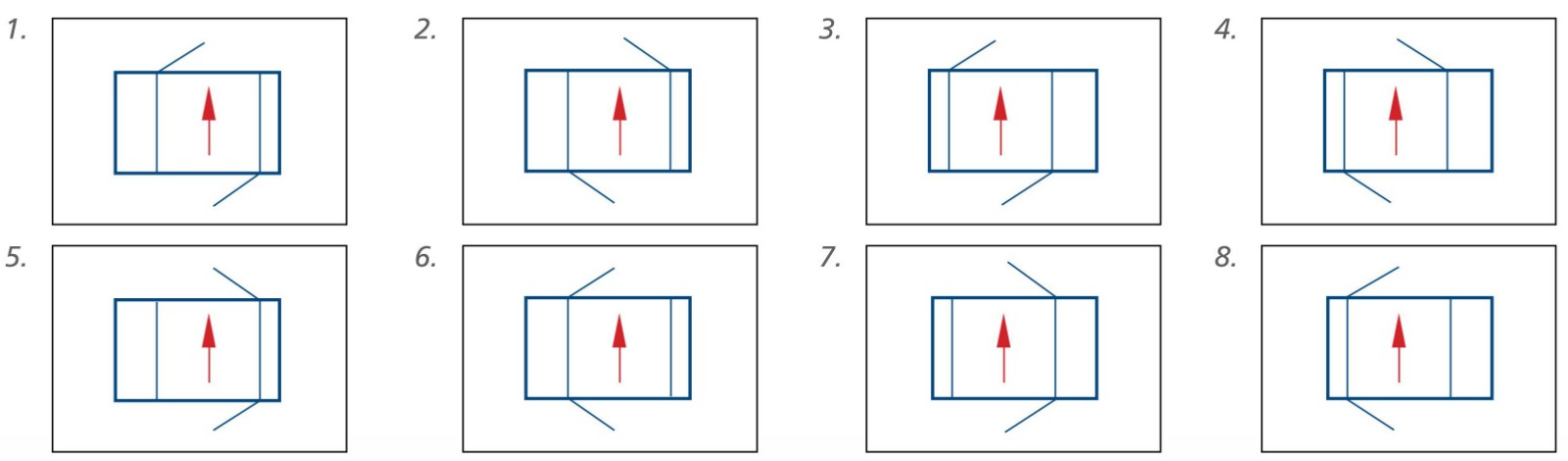

OPTIONAL EAS EXIT DIRECTIONS
MODEL EAS, DOOR DIRECTION
(Factory Configured. Choose One When Ordering.)
FEATURE
[Note]: The air shower is usually used in one direction.
1. Modular design, easy to transport and install
2. The double doors of the automatic blowing shower system are electronically interlocked.
3. The stainless steel nozzle can be rotated 360°, and the wind speed can reach more than 18m/s.
4. The air shower duration is adjustable from 10 to 99 seconds, and the shower duration is displayed.
5. Adopt primary and high-efficiency two-stage filtration system.
6. Using EVA sealing material, the sealing performance is excellent.
