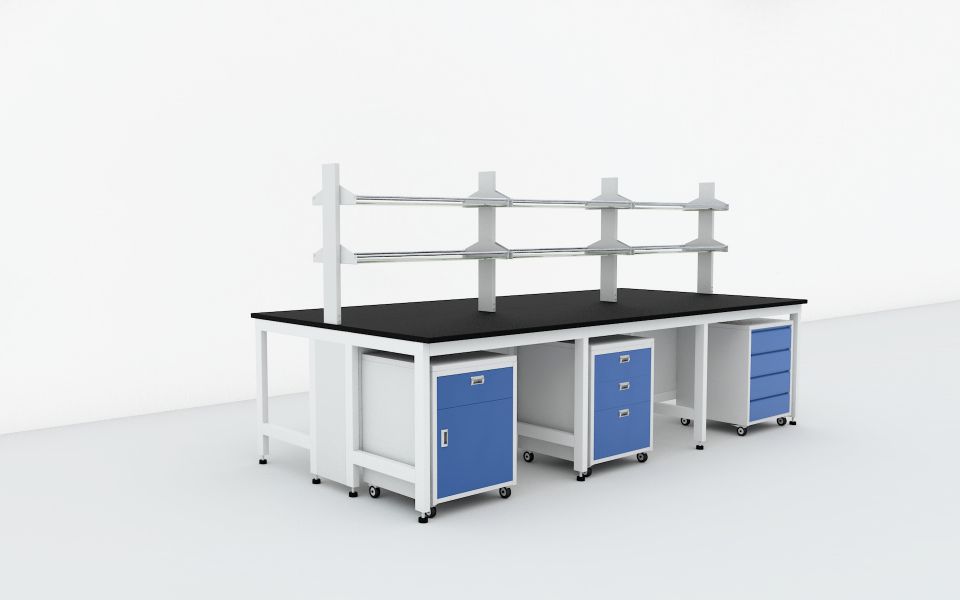

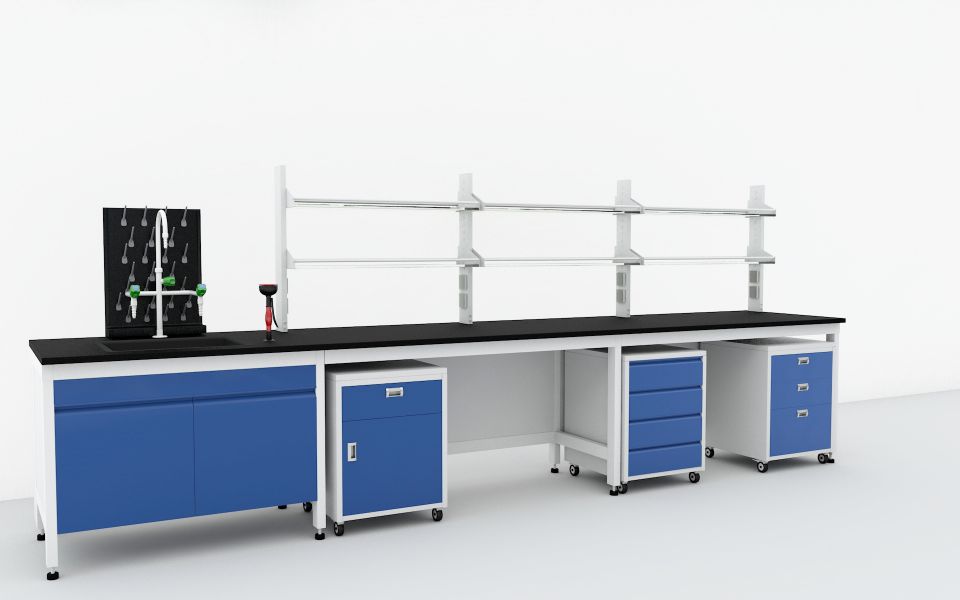

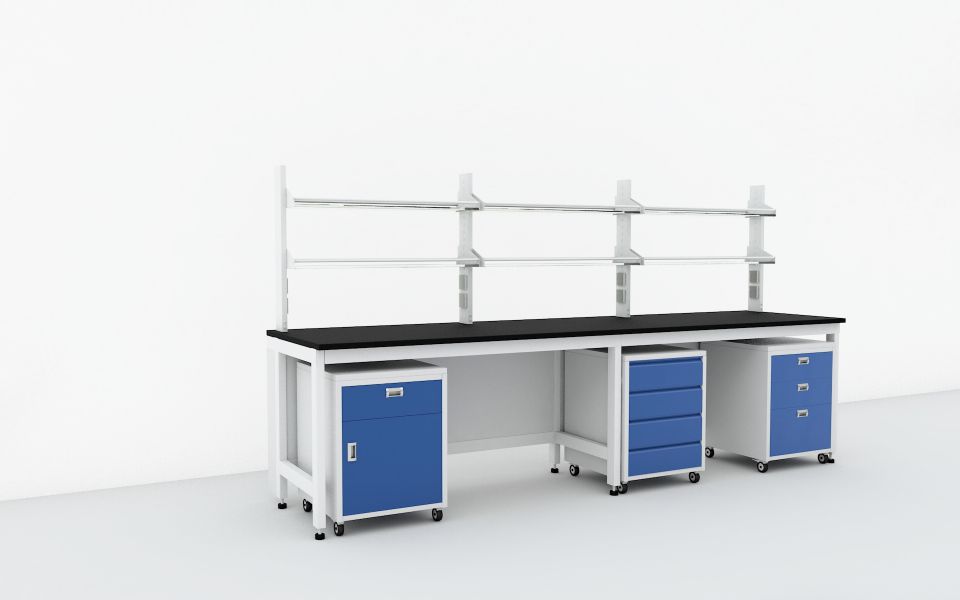

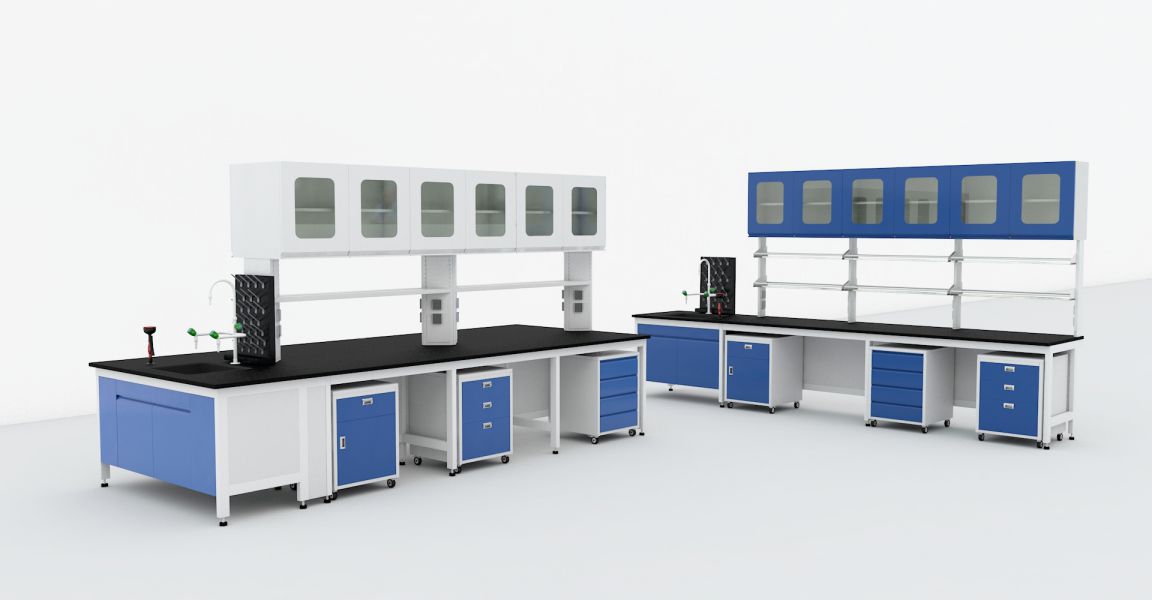

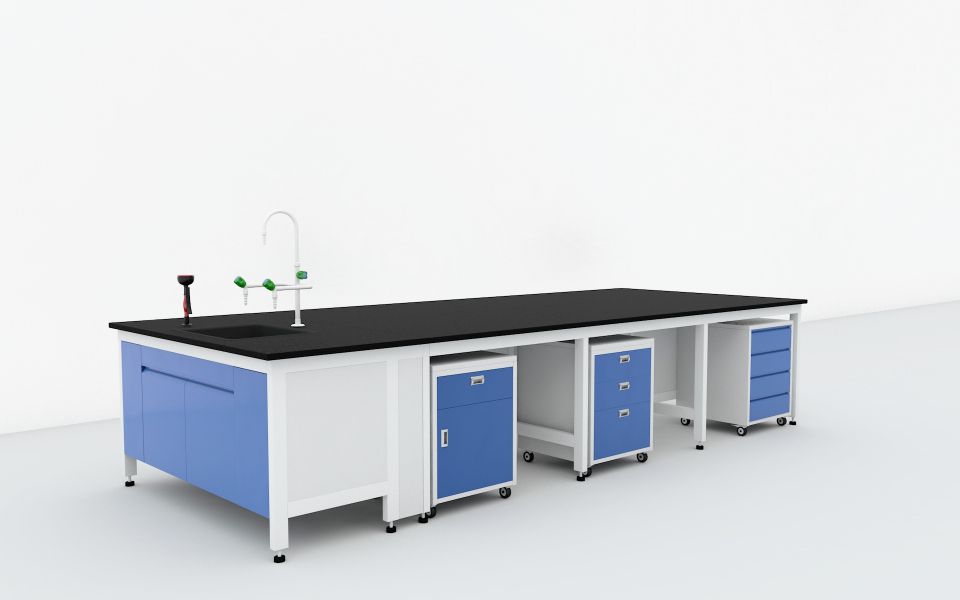

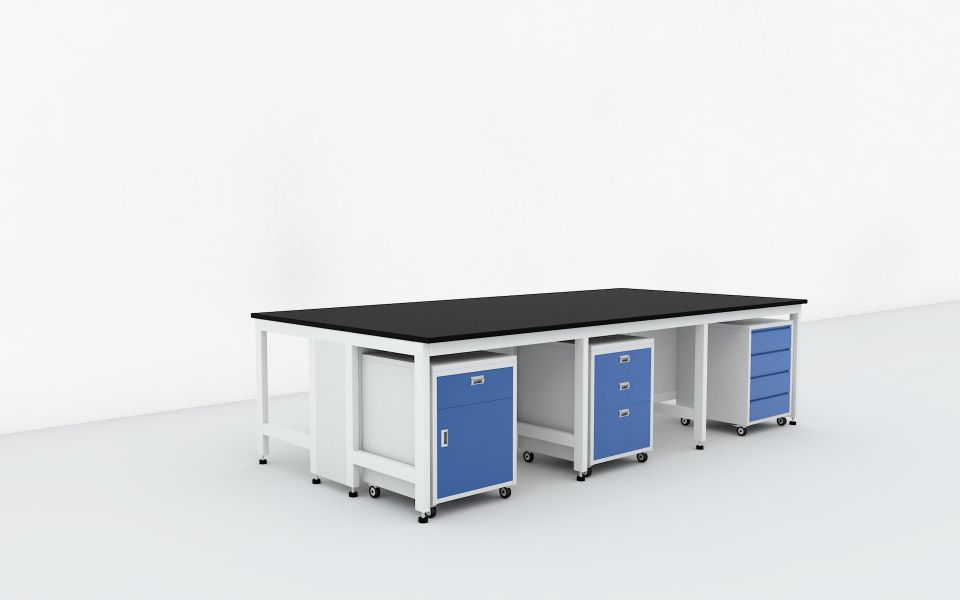

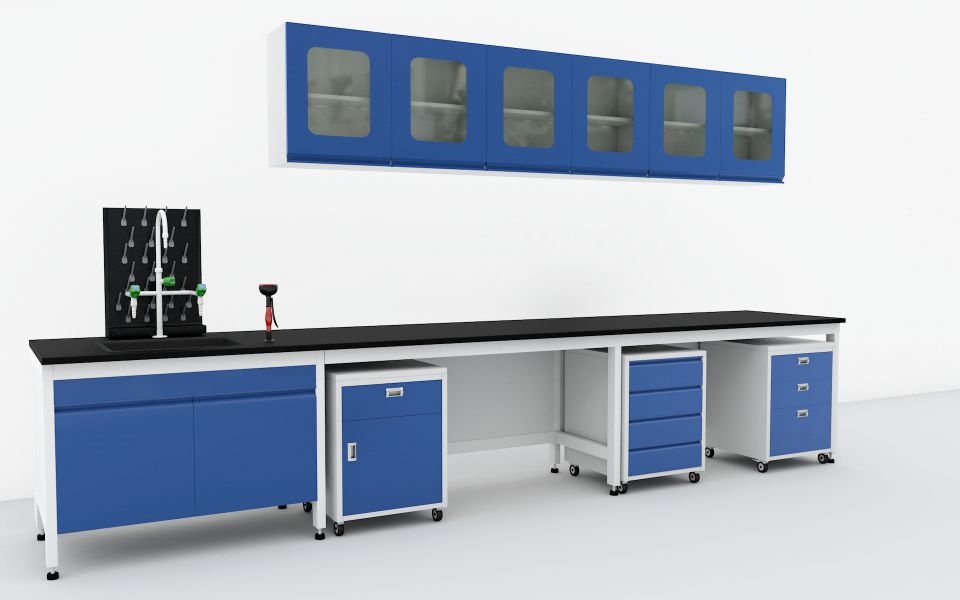

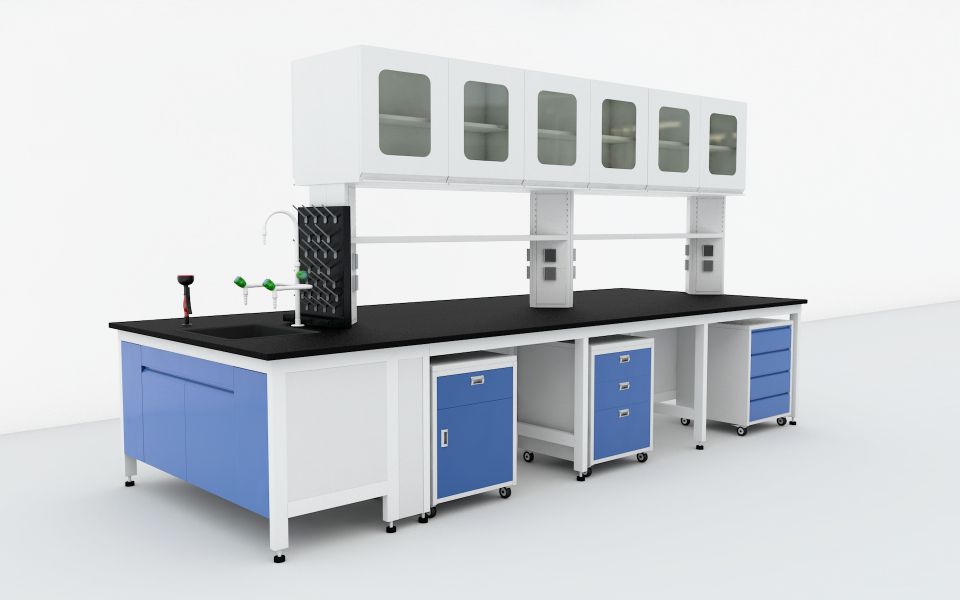

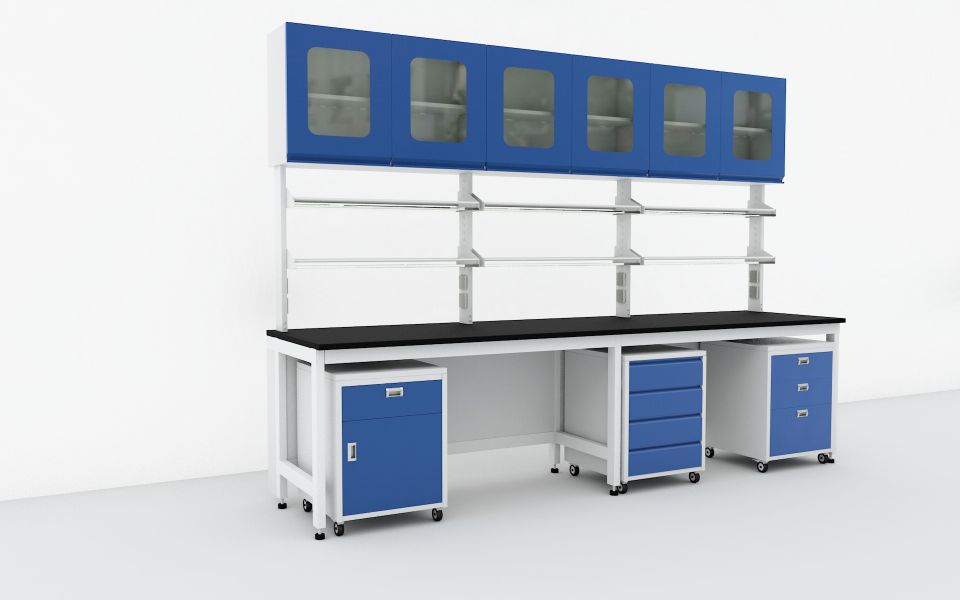

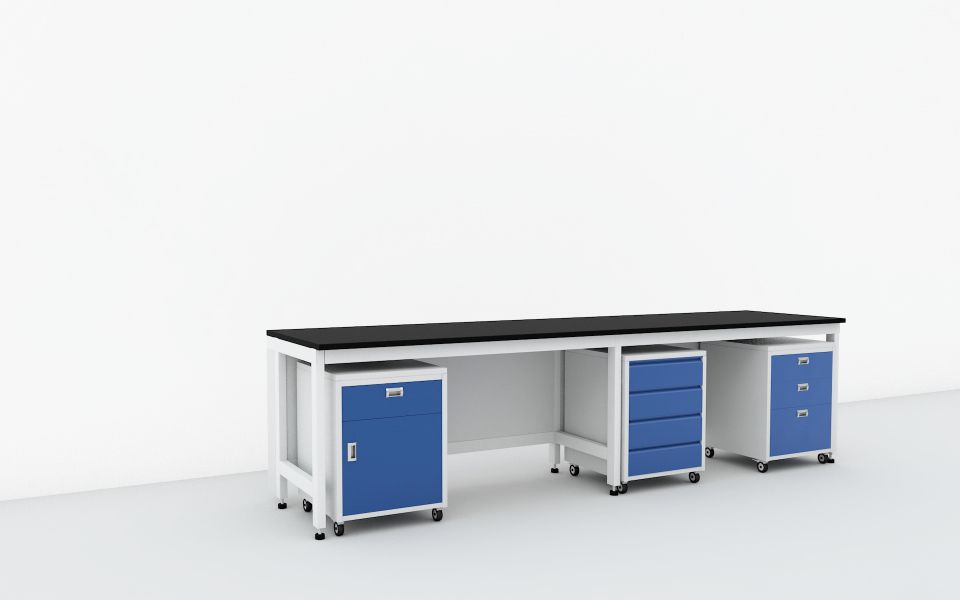

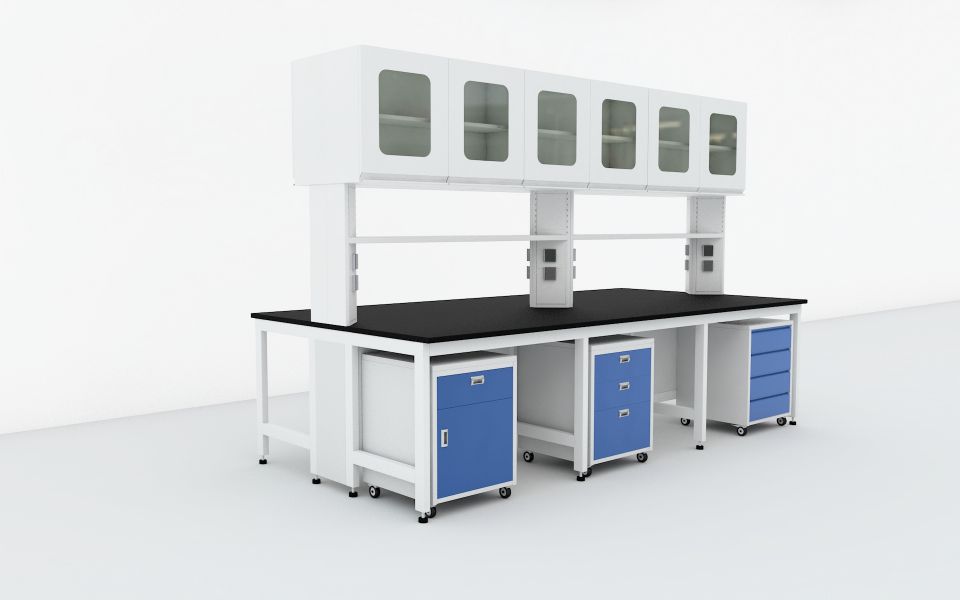

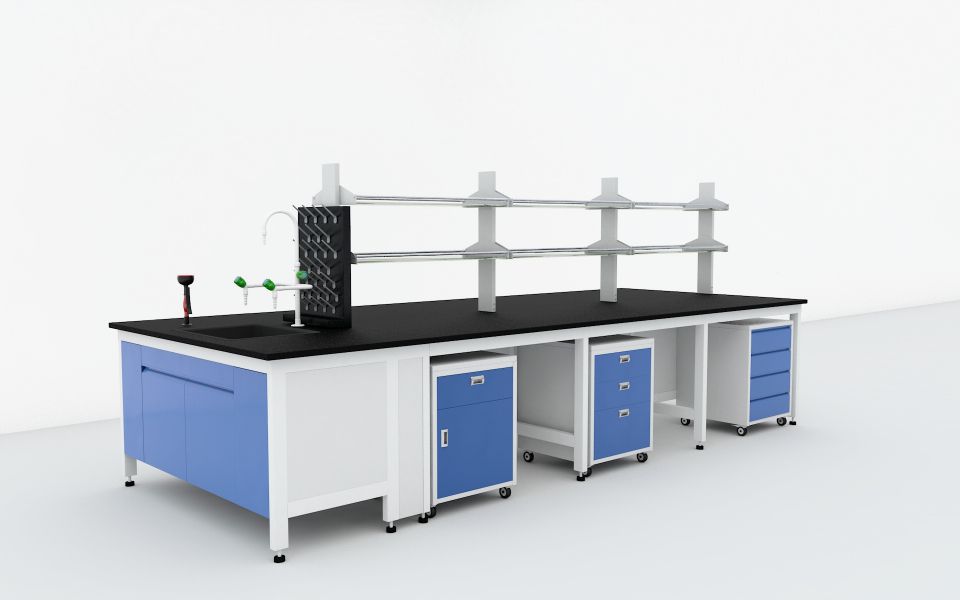

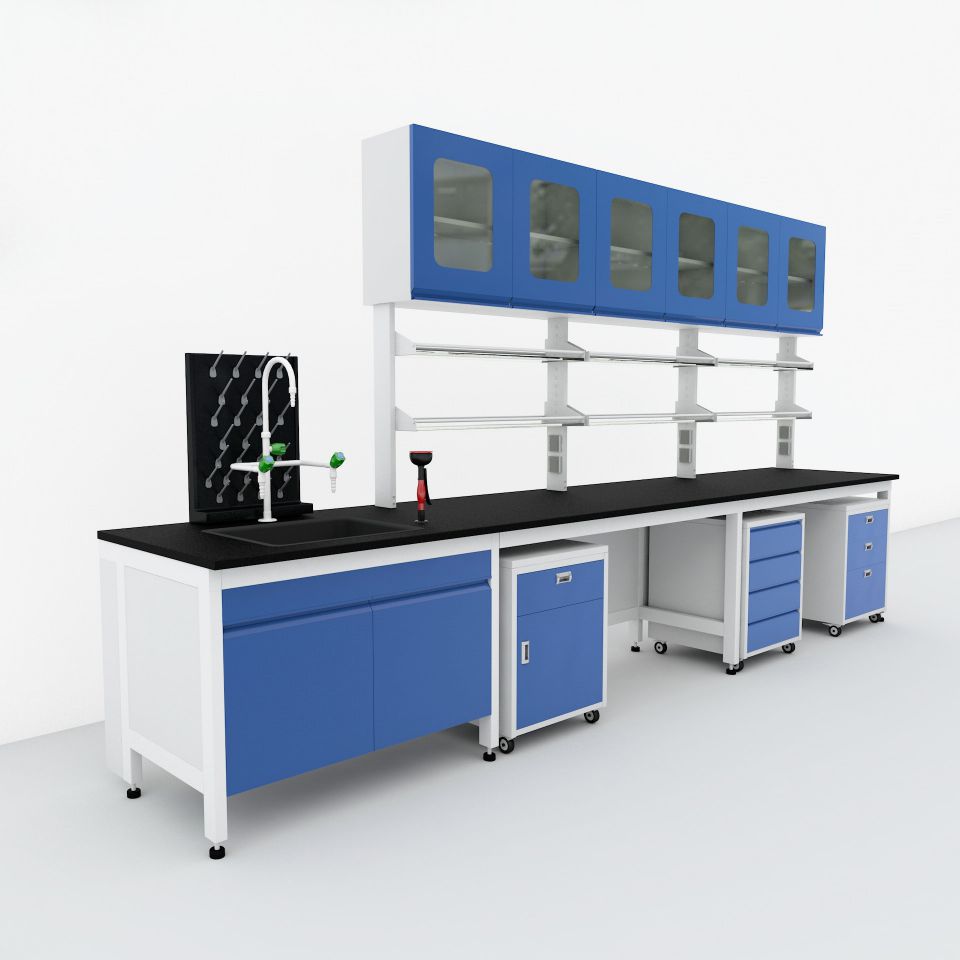

The H-Frame/Modular Lab Bench is supported by a solid H-Frame steel frame, connecting the upper and lower cabinet units and the countertop. Optional mobile cabinet, no cabinet and suspended cabinet structure.

Higher load-bearing capacity than C-Frame Lab Bench structure.

Compared to Floor Mounted Lab Bench, which install cabinets unit on the ground and are difficult to rearrange after installation, H-Frame Lab Bench allow lab personnel to easily reconfigure or customize lab layouts, and can be recreated using cabinet modular unit for a variety of layout.

SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16mm thickness

(2) Epoxy Resin countertop: 16/19/20/25mm thickness

(3) Ceramic countertop: 20mm thickness

(4) Trespa countertop: 13/16/19/20/25mm thickness

(5) Granite/Marble countertop: 20mm thickness

2. Frame&Accessories

(1) Frame: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth.

(2) Handle: Aluminum alloy/Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.

(3) Rail: DTC 16-inch three-section silent rail.

(4) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.

(5) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.

(6) Wheel for cabinet: High-quality PU mute universal wheel with brake, heavy load, high mechanical strength, shock absorption, wear resistance, no damage to the floor. A single wheel bears 120kg.

3. Option Cabinet Unit

①Wooden Cabinet Unit:

The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.

②Steel Cabinet Unit:

1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.

ADVANTAGES

· The new structure is the trend of the modern laboratory.

· Higher load-bearing capacity than C-Frame lab bench structure. Load bearing up to 350KG/m²

· Greater knee and leg room.

· Free configuration, compared to the Floor Mounted lab bench where the lab cabinet unit is installed on the ground, which is difficult to rearrange after installation, the H-Frame lab bench allows laboratory personnel to easily reconfigure or customize the laboratory floor plan.

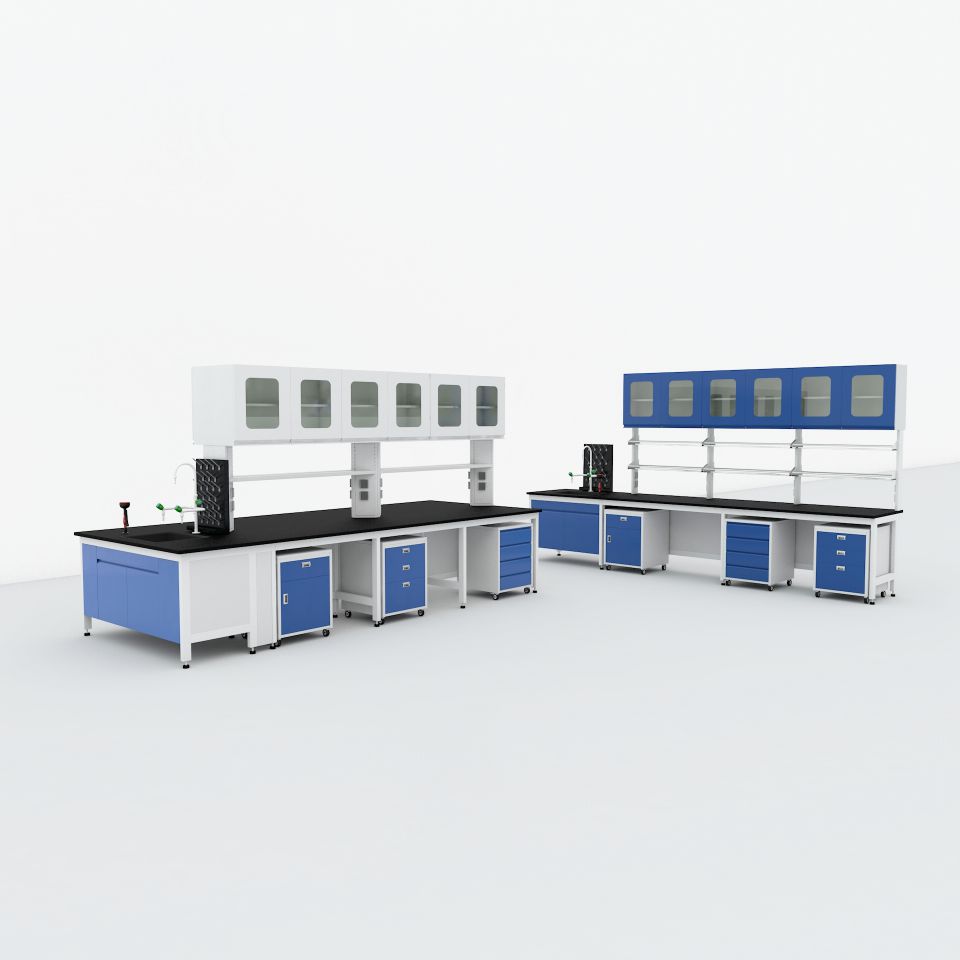

· Save space. In today's shrinking lab spaces, flexible cases can be pieced together or split to fit your space. You are no longer limited by traditional regular casework. If your lab space increases, additional modules can be ordered to grow with your new layout.

Standard Size
