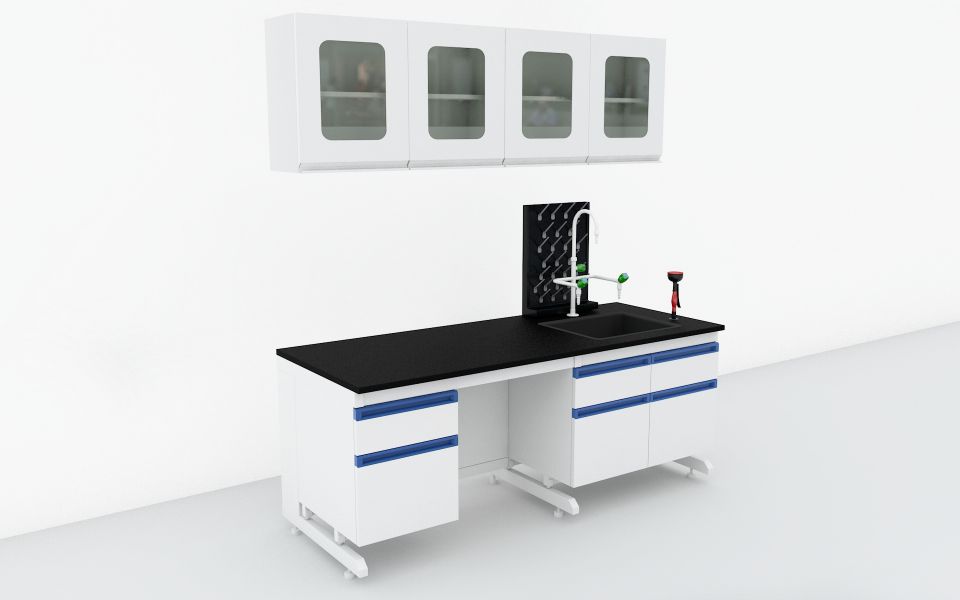

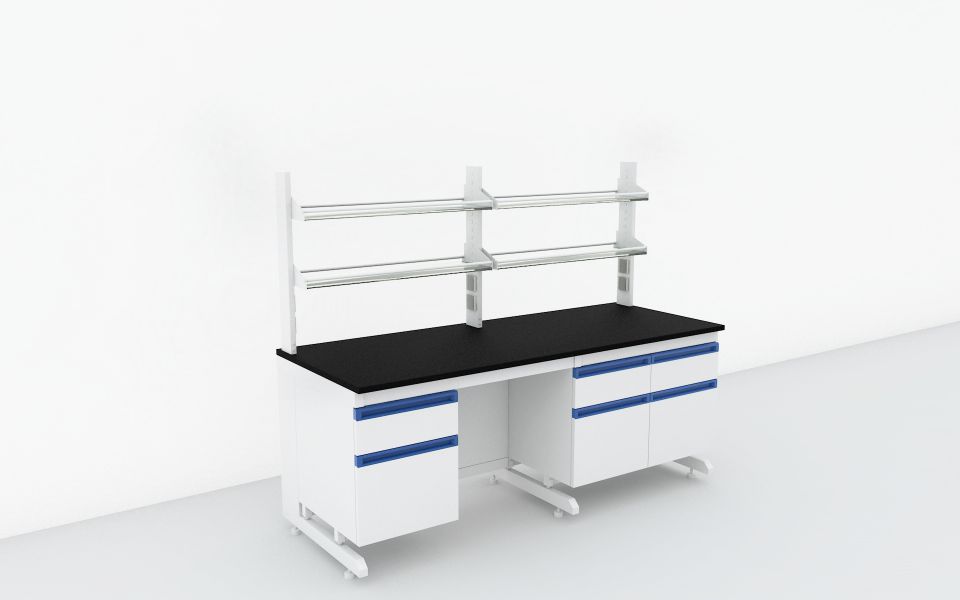

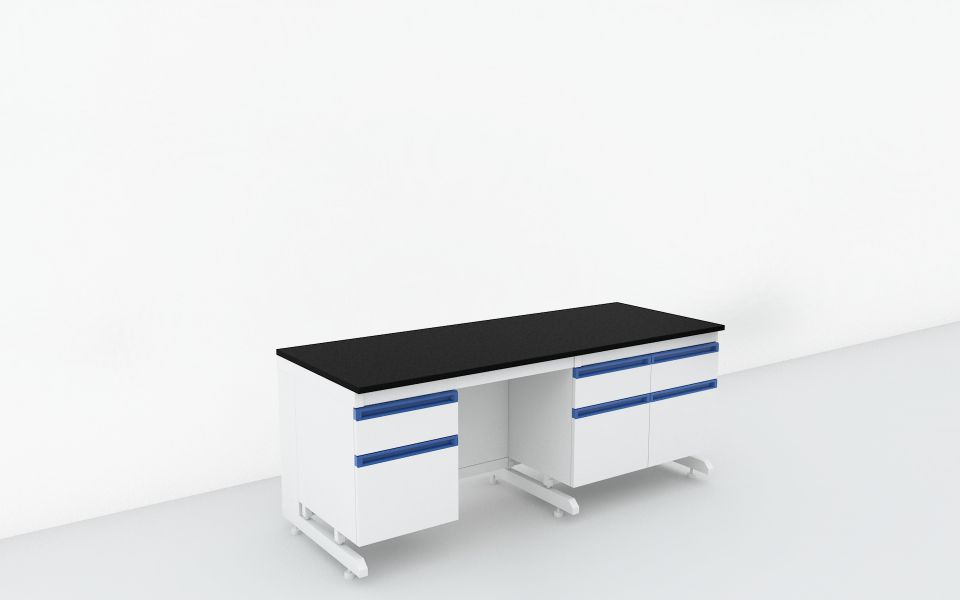

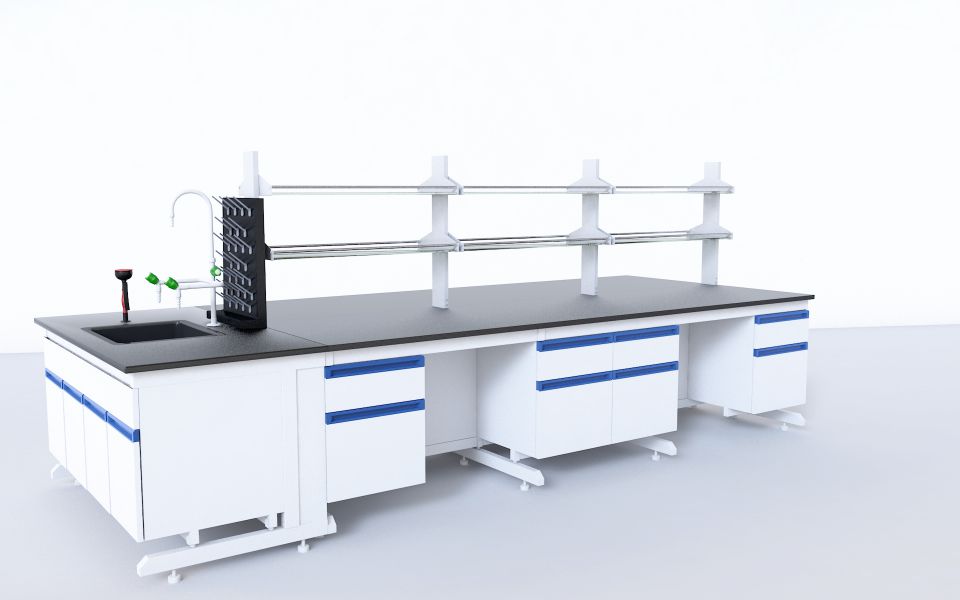

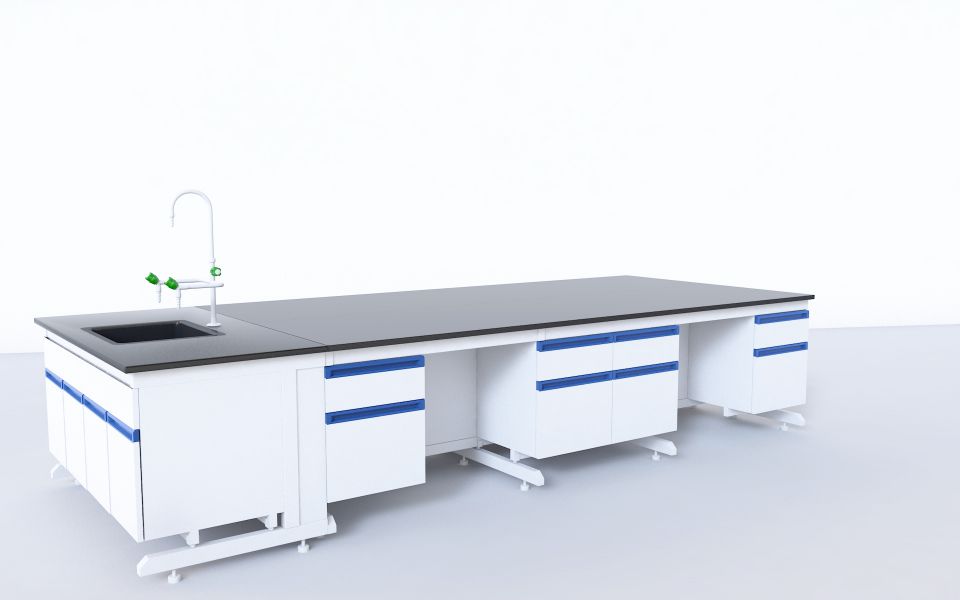

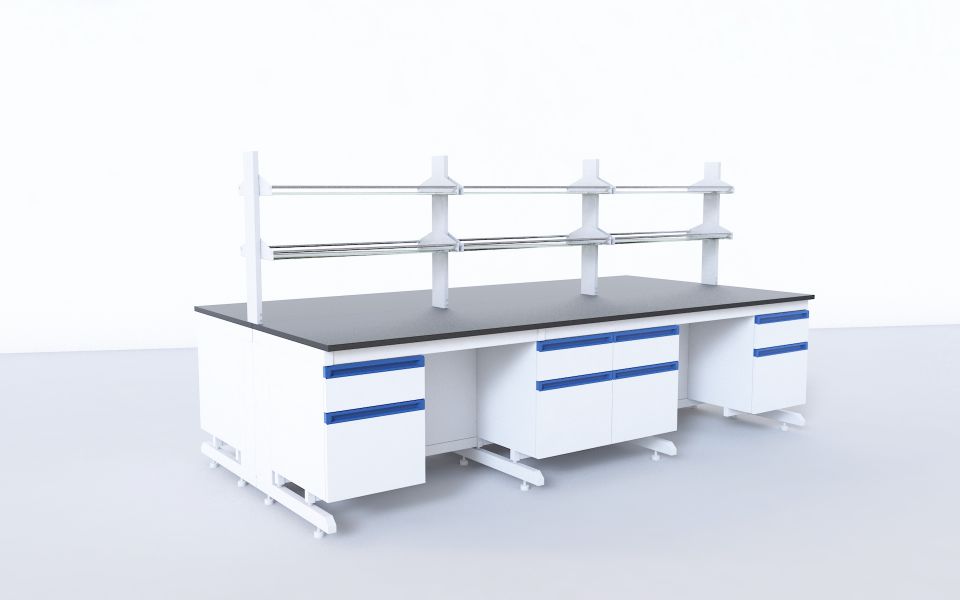

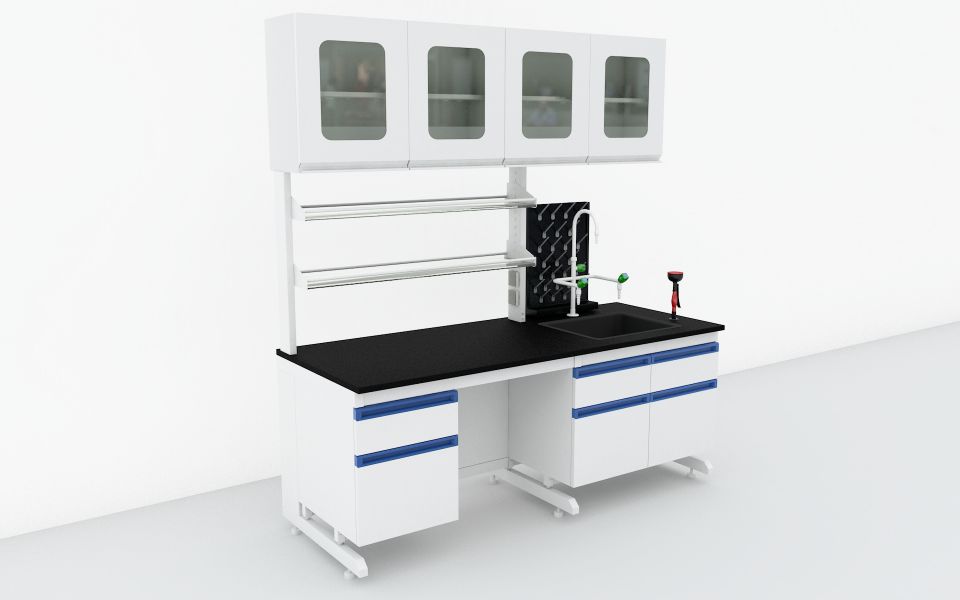

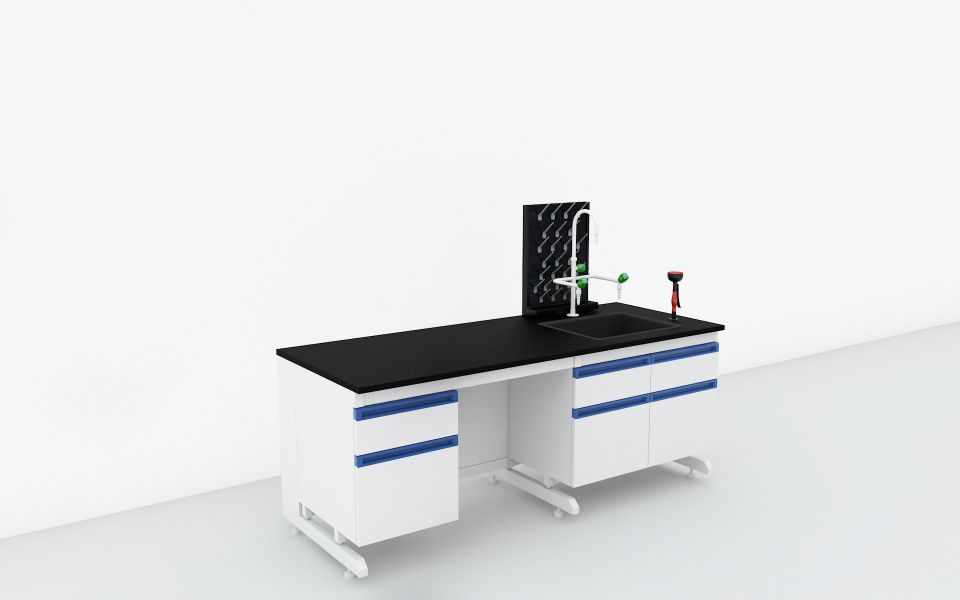

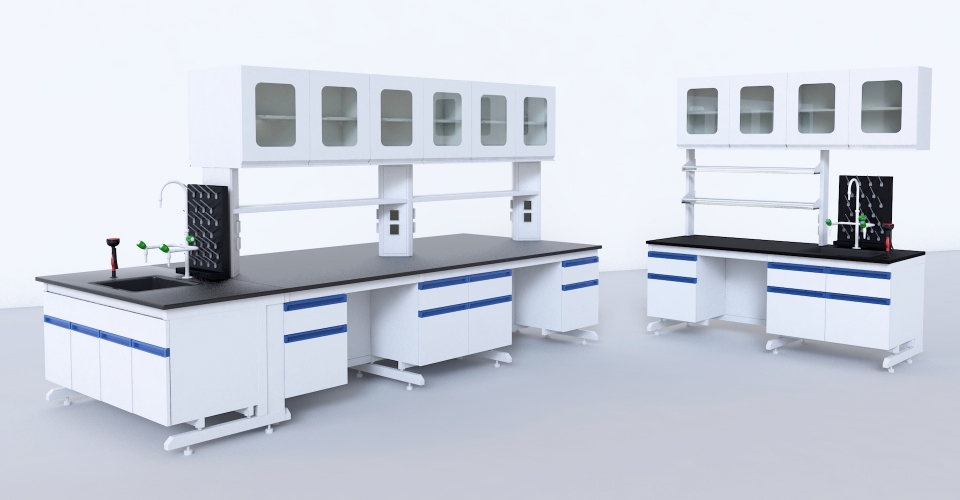

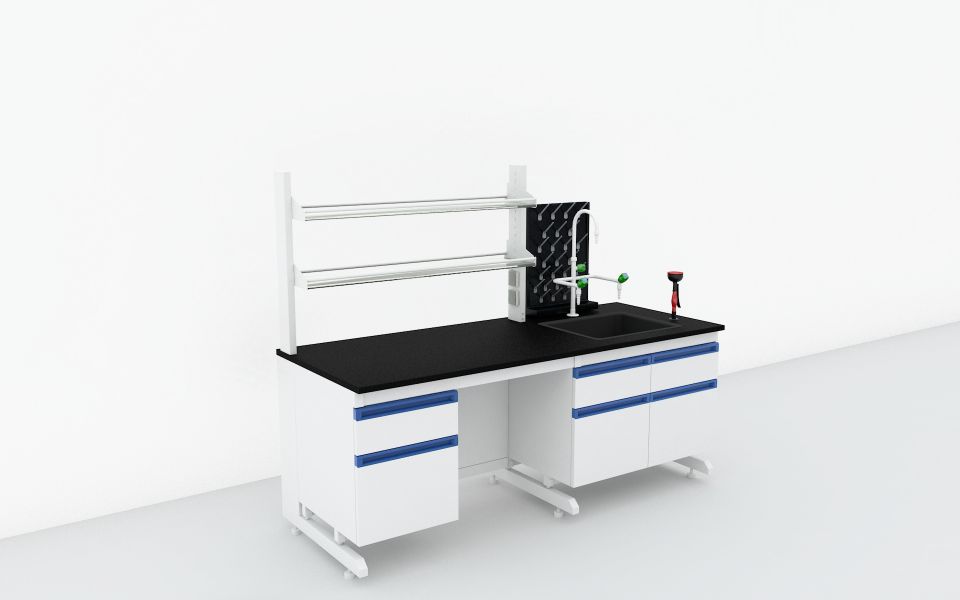

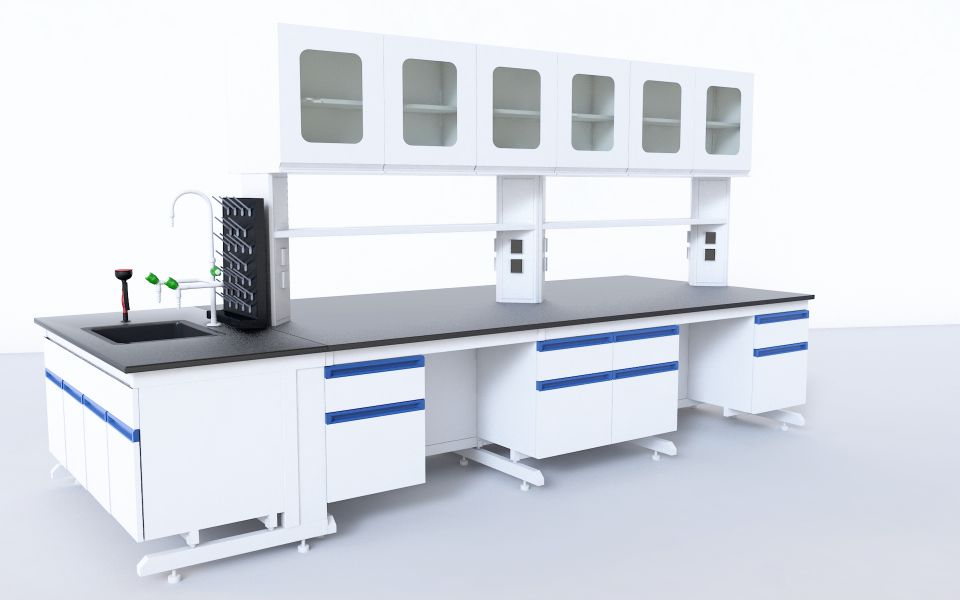

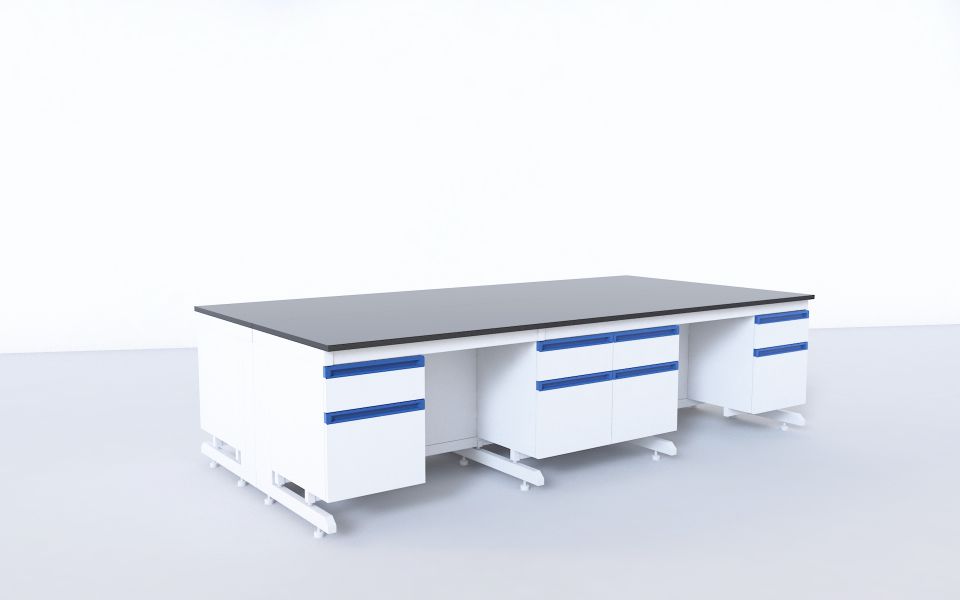

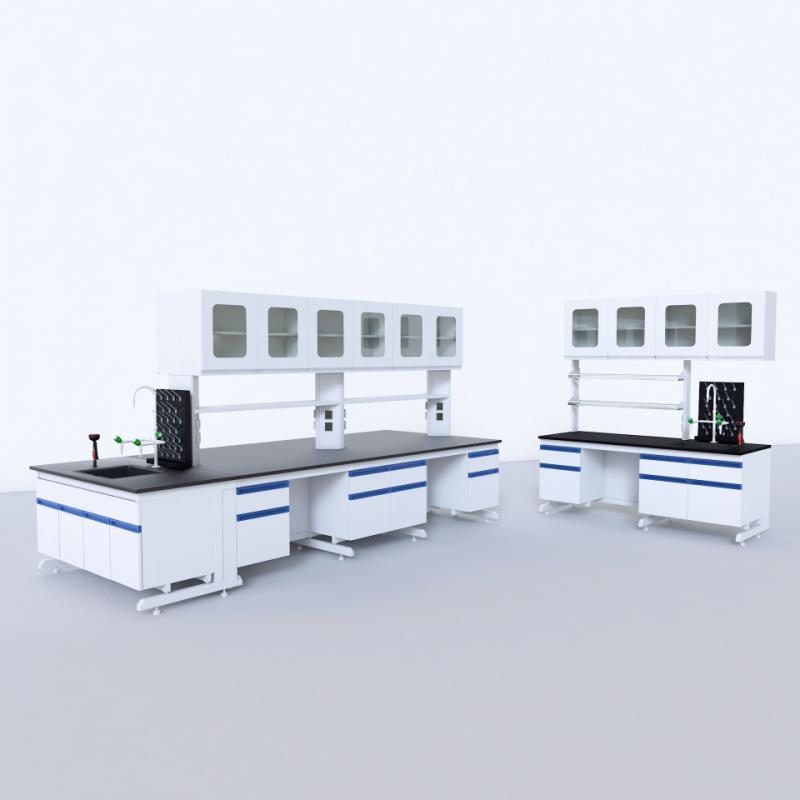

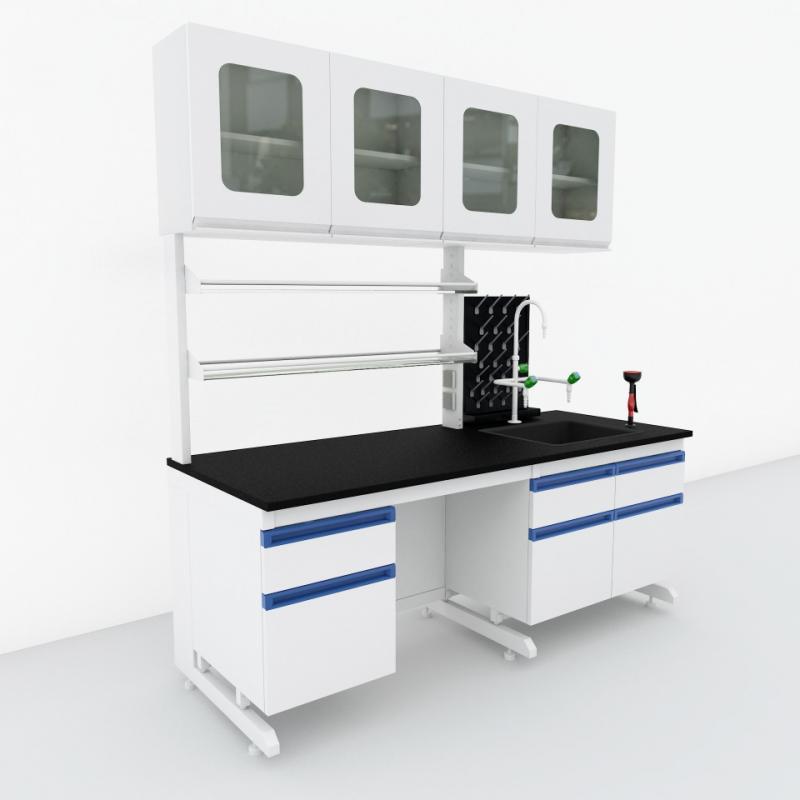

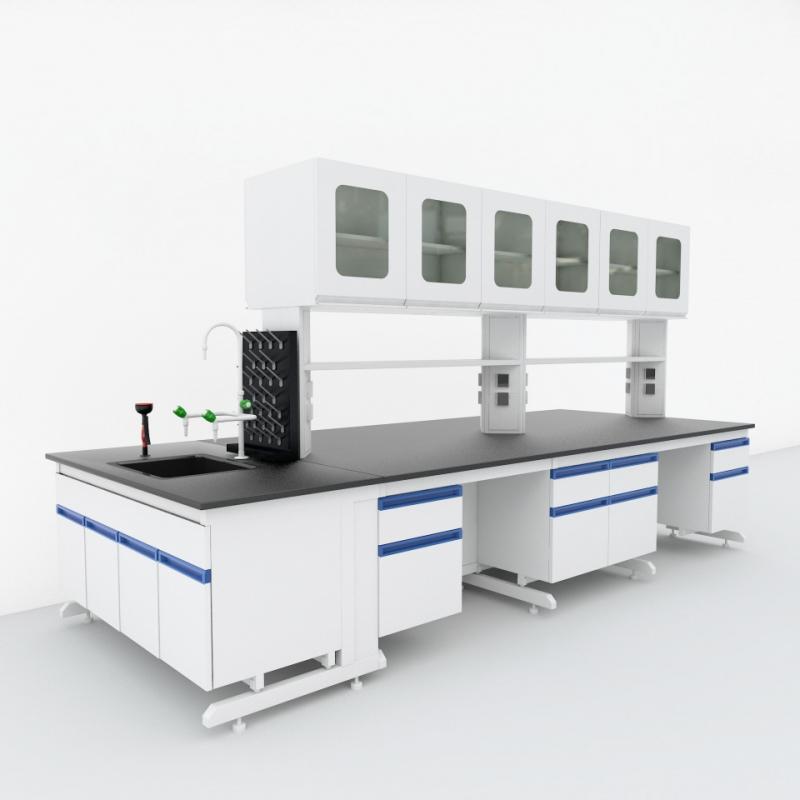

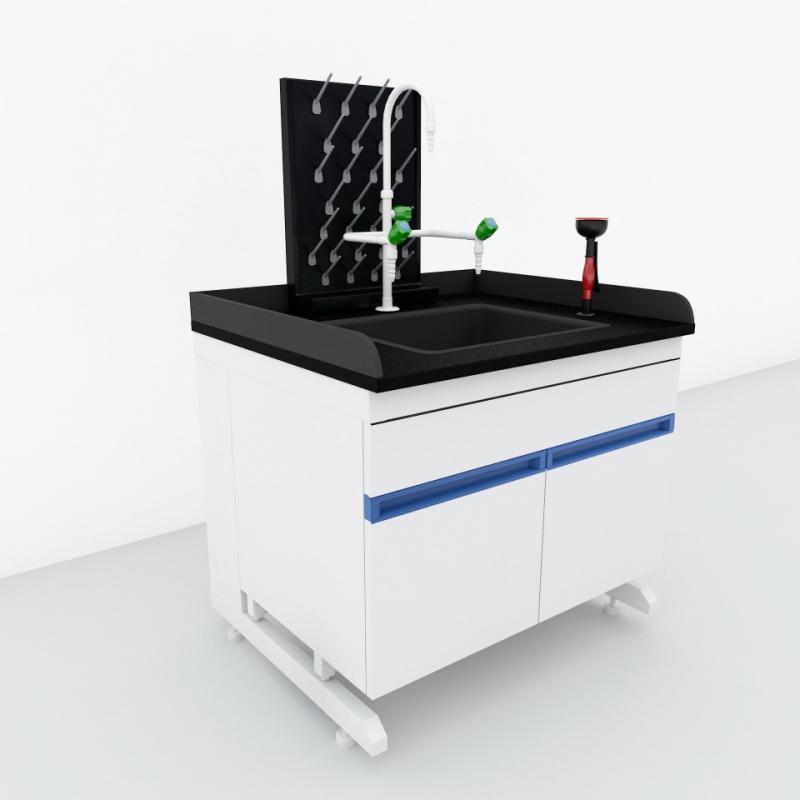

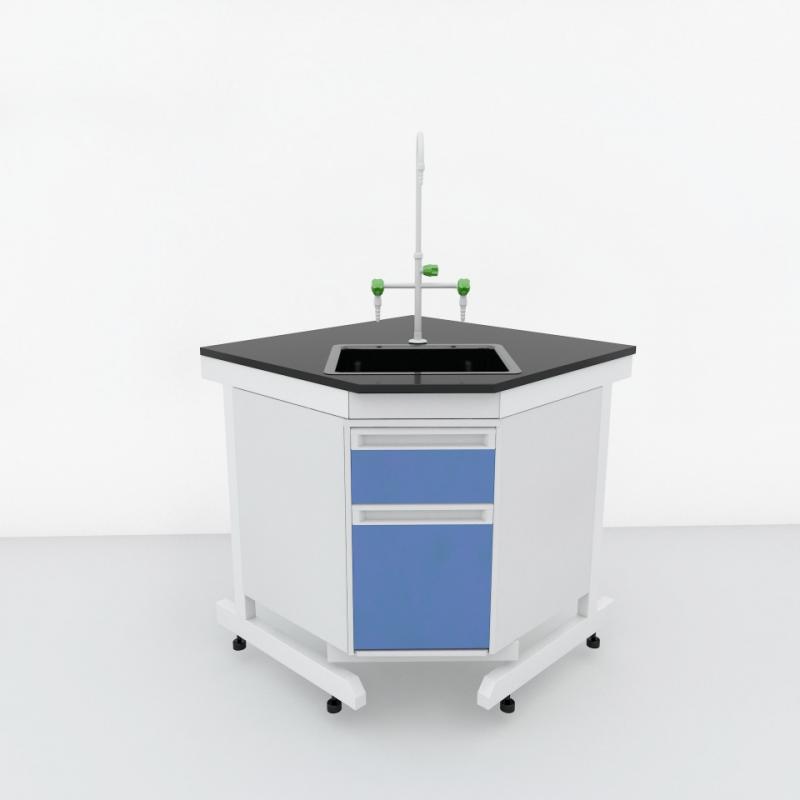

The C-Frame Lab Bench is supported by an independent steel frame, connecting the upper and lower cabinet units and the countertop. Simple structure, flexible and changeable, can be combined freely.

The C-Frame structure can be selected without cabinet, suspended cabinet and mobile cabinet structure, good moisture resistance, easy installation and disassembly. After installation, the upper and lower cabinet units can be moved, added or removed according to laboratory needs without affecting other parts of the bench system. With primary shock absorption function, the load-bearing capacity can reach more than 250KG/m².

SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16mm thickness

(2) Epoxy Resin countertop: 16/19/20/25mm thickness

(3) Ceramic countertop: 20mm thickness

(4) Trespa countertop: 13/16/19/20/25mm thickness

(5) Granite/Marble countertop: 20mm thickness

2. Frame&Accessories

(1) Frame: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth.

(2) Handle: Aluminum alloy/Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.

(3) Rail: DTC 16-inch three-section silent rail.

(4) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.

(5) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.

3. Option Cabinet Unit

①Wooden Cabinet Unit:

The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.

②Steel Cabinet Unit:

1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.

ADVANTAGES

· Modern design and unique structure.

· The structure is simple, flexible and changeable, and can be combined freely.

· No cabinet, suspended cabinet and mobile cabinet structure can be selected.

· Easy to clean, enough space between cabinets and floor.

· Greater knee and leg room.

· Good moisture resistance.

· Primary shock absorption function, load-bearing capacity can reach more than 200KG/m².

· Upper and lower cabinet units can be moved, added or removed according to laboratory needs without affecting the rest of the bench system.

· C-Frame lab bench not only has a unique design and structure, but also its production process is very particular. The high-quality rectangle steel is further processed, and the anti-corrosion performance is improved after the other steel has undergone professional chemical rust removal treatment. In addition, the cabinet body of the entire lab bench is mainly through the three-in-one connection structure, which ensures the good load-bearing performance of the test bench during use and increases the practical performance.

Standard Size
